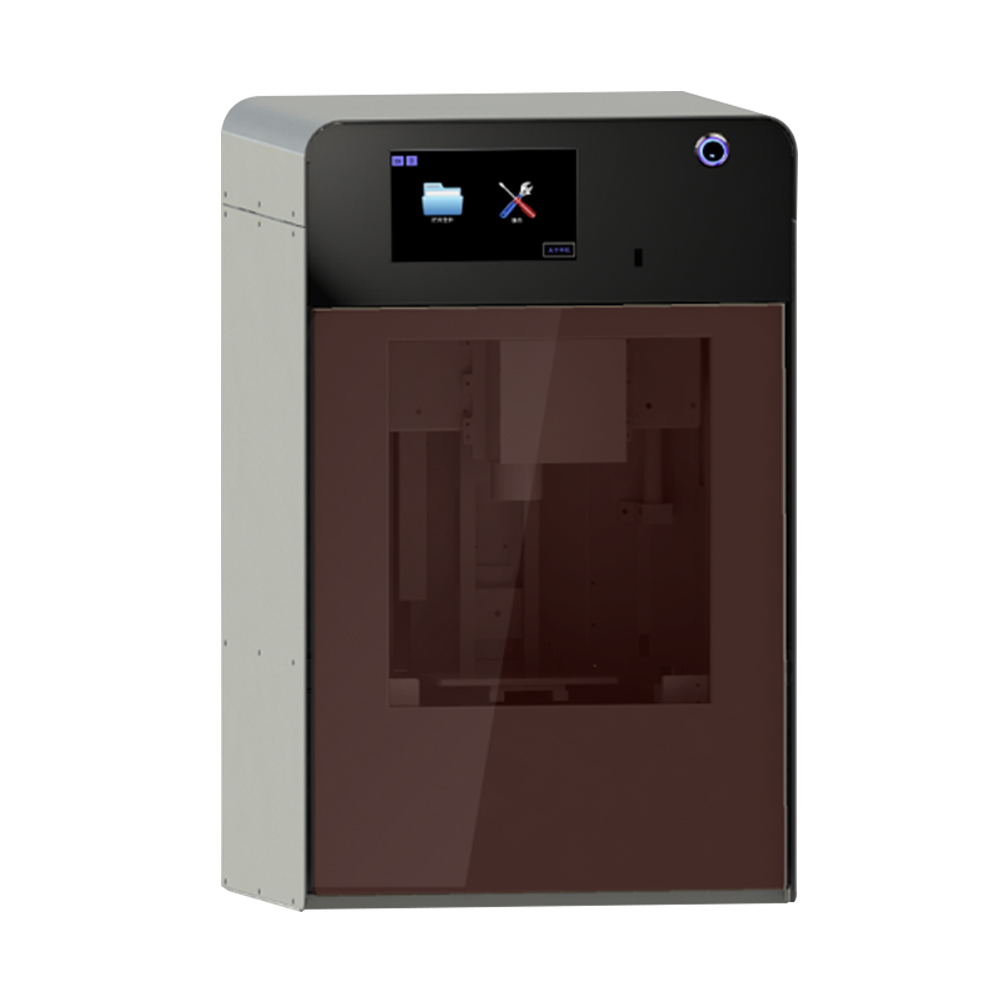

PLD MD

VNICI MD

DLP 3D Printer MD

DLP 3D Printer MD is an open-architecture DLP printer specifically engineered for material research and development, offering high flexibility, precision, and ease of use.


DLP 3D Printer MD is an open-architecture DLP printer designed for material research and development, offering high precision, flexibility, and easy operation. It features a high-resolution 405 nm optical engine (385 nm optional) with DLP technology and a resolution of 1920 × 1080.


The printer supports touchscreen control and USB offline printing, eliminating the need for a computer. Powered by self-developed slicing software with an expiration lock function, it operates at only 50 W, enabling long-term continuous use without cooling downtime. All printing parameters are open and adjustable, and the system comes with a 1-year warranty.

Advantages of DLP 3D Printer MD

Software-Based Resin Lock

Software-Based Resin Lock

Timed Lock & Offline Unlock

Timed Lock & Offline Unlock

Direct SLC & Multi-Software Support 1

Direct SLC & Multi-Software Support

5-Inch Touchscreen

5-Inch Touchscreen

USB Offline & Remote Printing

USB Offline & Remote Printing

High-Precision Z-Axis

High-Precision Z-Axis

Proprietary Slicing Software

Proprietary Slicing Software

Smart Auto-Support System

Smart Auto-Support System

Feature of DLP 3D Printer MD

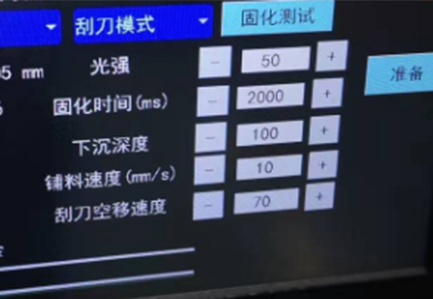

Real-Time Adjustable Print Parameters

Real-Time Adjustable Print Parameters

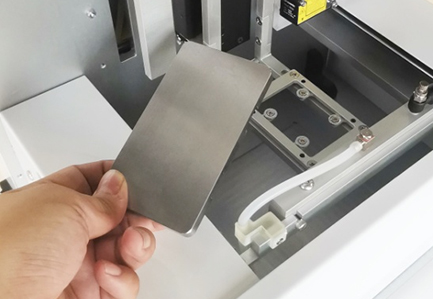

Disassemblable Magnetic Platform

Disassemblable Magnetic Platform

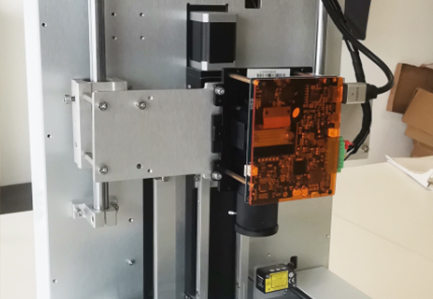

Adjust Print Size And Resolution

Adjust Print Size And Resolution

Technical Specifications of DLP 3D Printer MD

ItemSpecification
ModelPrism MD
TechnologyTexas Instruments DLP Technology
Resolution1920 × 1080
Supported FormatsPr3 / SLC
Light Source Wavelength405 nm / 385 nm (Optional)
Build Size96 × 54 × 100 mm / 144 × 81 × 100 mm / 65 × 35 × 80 mm (Customizable)
Pixel Size50 μm / 75 μm / 35 μm (Customizable)
Layer Thickness0.01 – 0.2 mm (Z-axis repeat positioning accuracy: 0.01 mm)
Build PlatformMagnetic, detachable build platform
Recoating SystemBlade recoating (vacuum adsorption / vertically movable, optional)
Resin Vat Capacity1 L (printing height 10 mm) / 5 L (printing height 100 mm)
Light Source TypeImported light source
Power SupplyDC 12V / 6A
Machine Dimensions350 × 300 × 750 mm
WeightNet weight: 10 kg; Gross weight: 33 kg (including packaging)
Printing ModeSupports offline printing via USB

Start A Project With Us

Applications of DLP 3D Printer MD

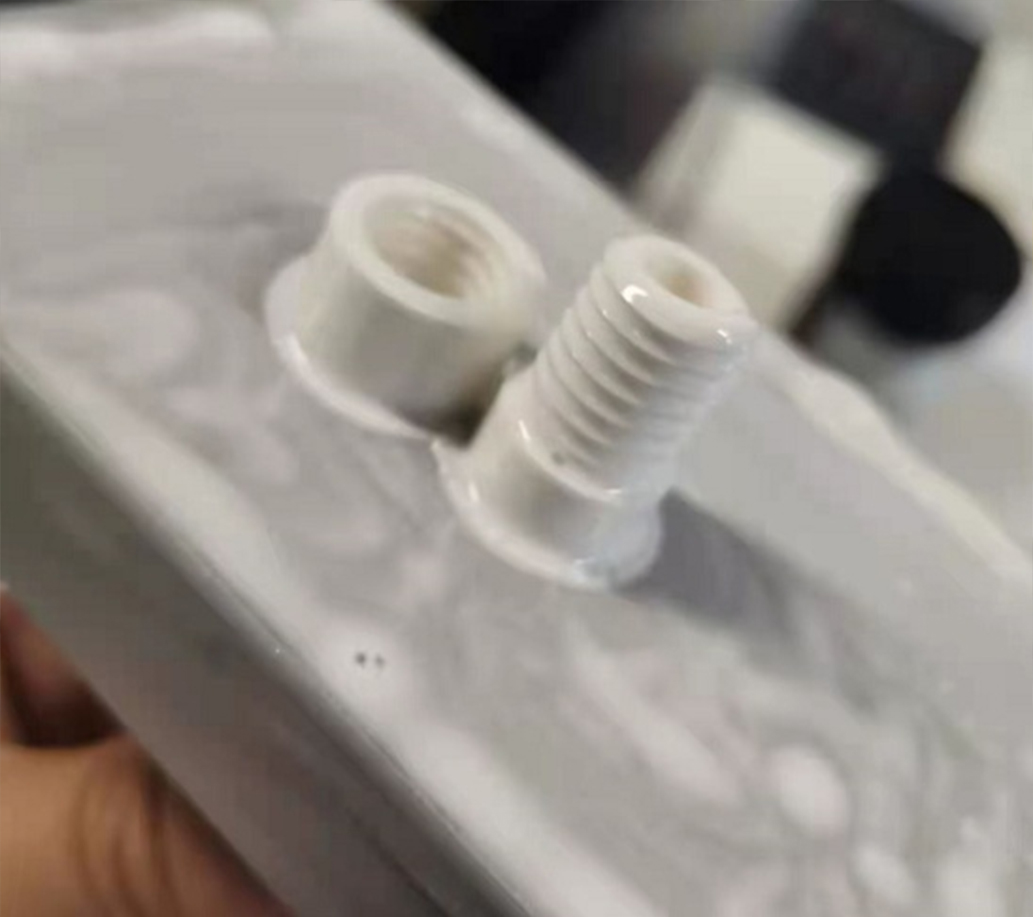

Ceramic Slurry

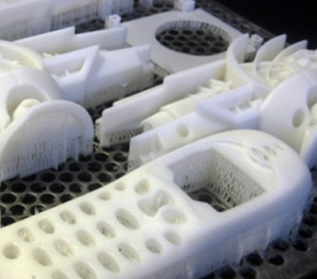

Normal Model

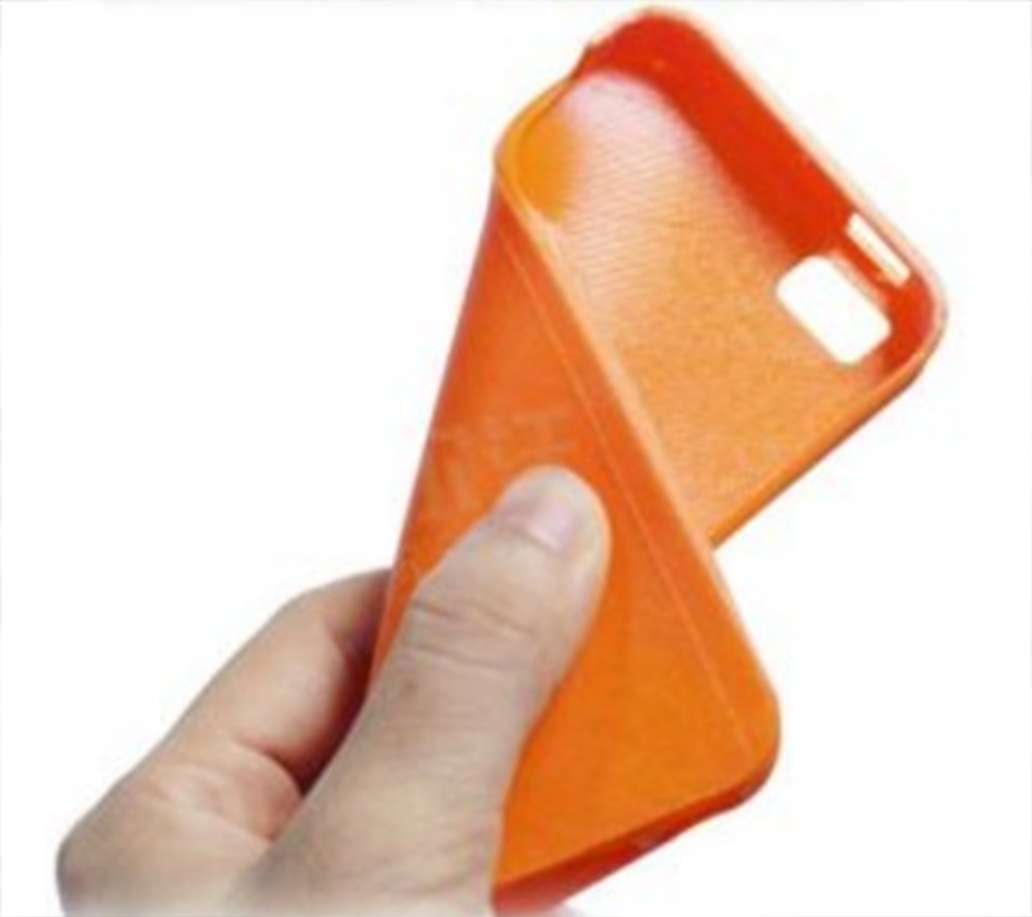

Flexible Material

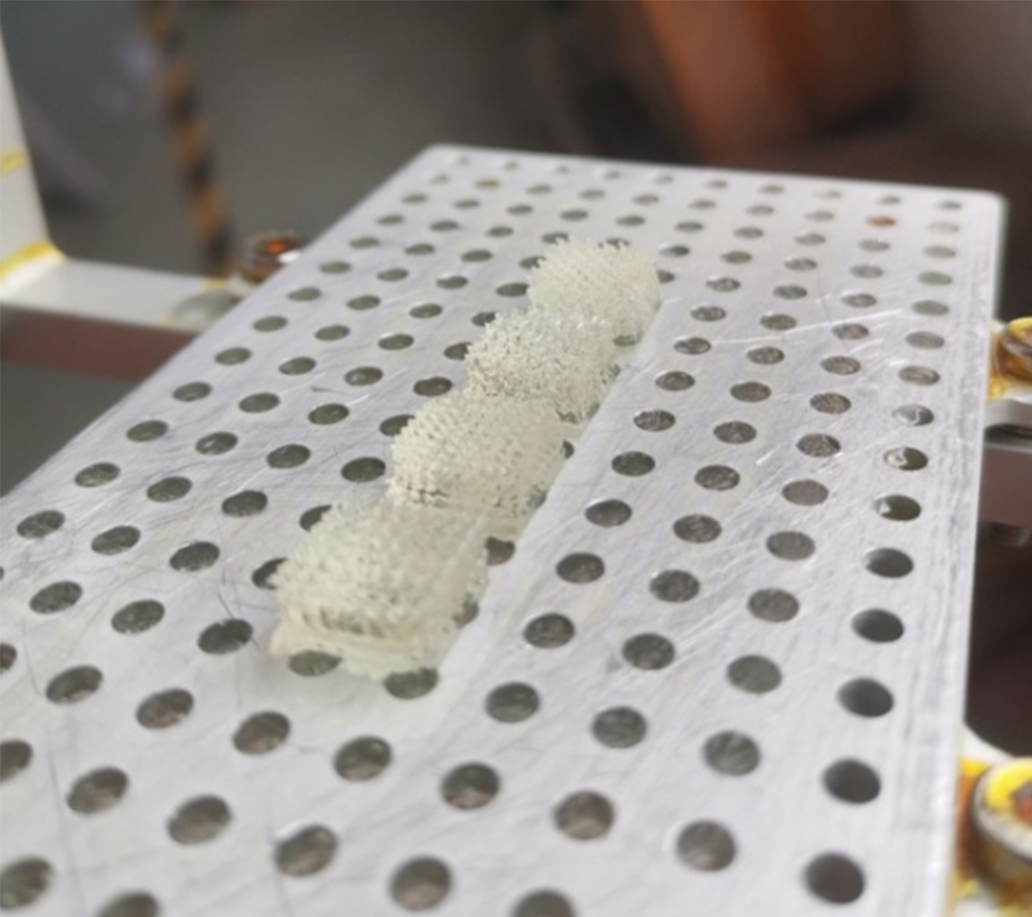

Biological Materials, Biomaterial

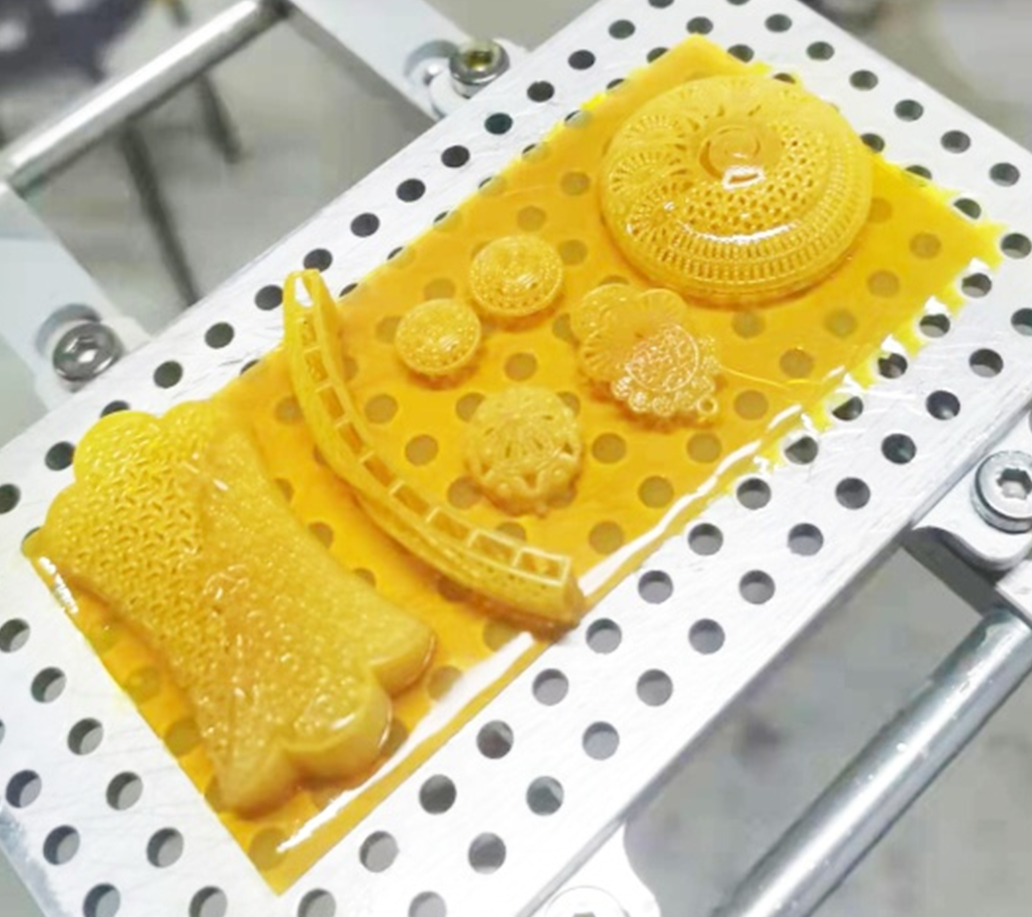

Fine Wire Jewelry Wax Type

Why Choose VNICI As Your Ultrahigh Speed 3D Printer Supplier?

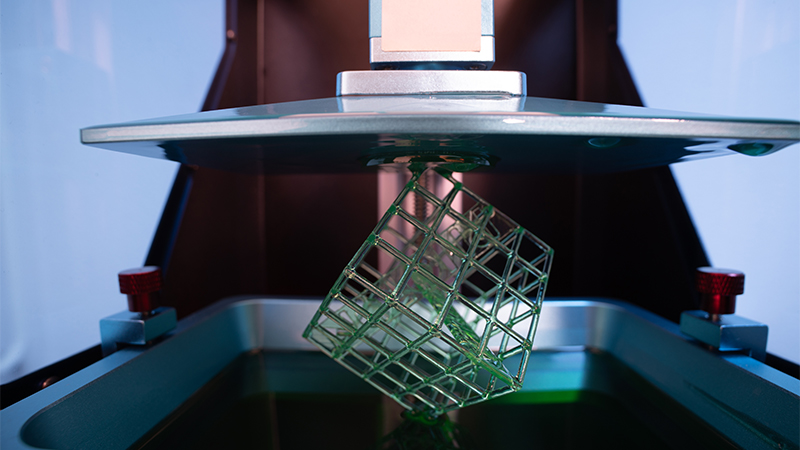

Core-Technology

Core Technology

Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.

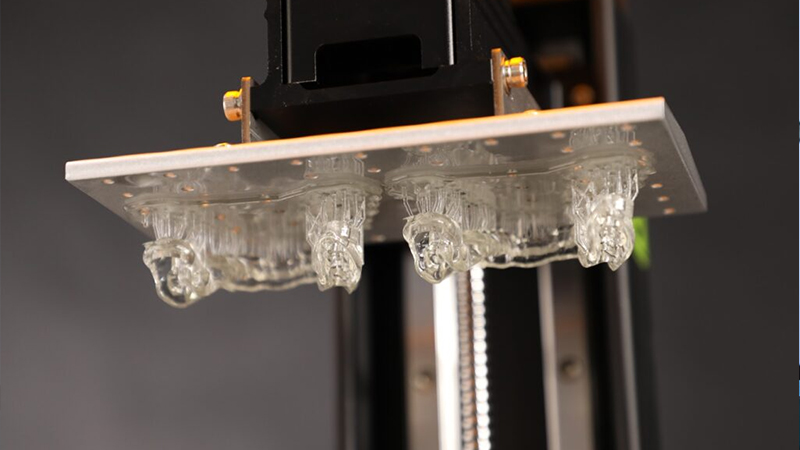

Industrial-Solutions

Industrial Solutions

We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.
DM_20260611160809_001

Good after-sales service

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.
DM_20260611160810_001

Fast Delivery

We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.

DLP 3D Printer MD FAQ

  • Can I use my own logo or design on the products?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we offer OEM/ODM services; your logo and design can be created on the products.

  • Do you have a factory?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and provide OEM/ODM services to our customers.

  • What is your factory's production capacity?

    加 Created with Sketch.
    形状 Created with Sketch.

    Our production capacity is equivalent to 2,000 3d printers per month and 20 tons resins per month.

  • What is the pricing information for your products?

    加 Created with Sketch.
    形状 Created with Sketch.

    Hello! How can I assist you today? What products are you interested in? Please let me know your needs, and we can discuss further.

  • What brand of laser do you use?

    加 Created with Sketch.
    形状 Created with Sketch.

    We use AOC laser. What brand of laser do you prefer?

  • What brand of scanner do you use?

    加 Created with Sketch.
    形状 Created with Sketch.

    We use Hans scanner or Scanlab Scanner. Which one do you prefer?

Related Products

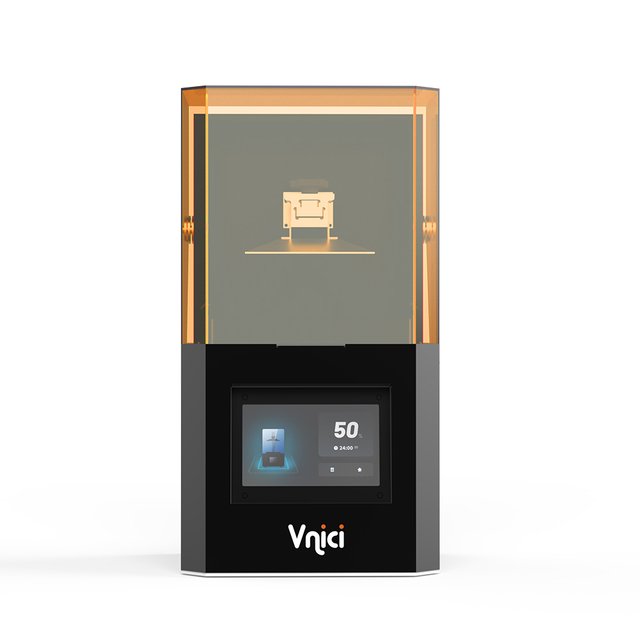

D1

D1

Built with a thickened metal Z-axis and a reinforced all-metal structure, D1 delivers exceptional printing stability while reducing layer lines for smoother surfaces.

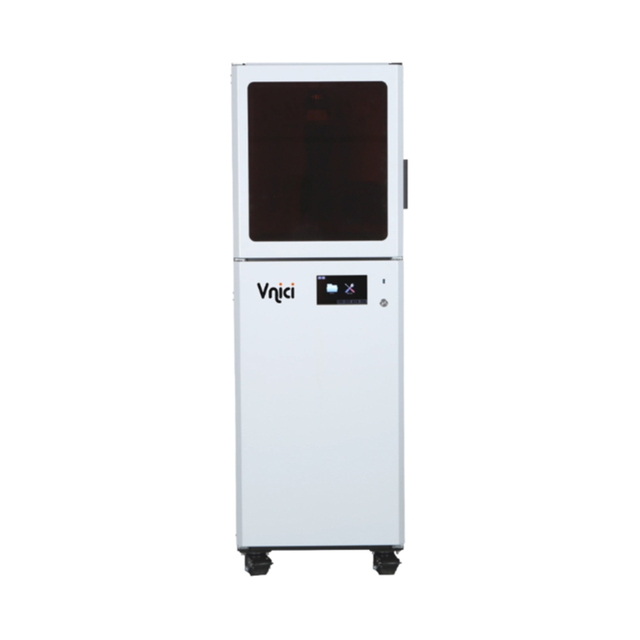

D300

D300

DLP 3D Printer D300 is a high-precision, energy-efficient industrial resin printer designed for stable batch production and versatile working environments.

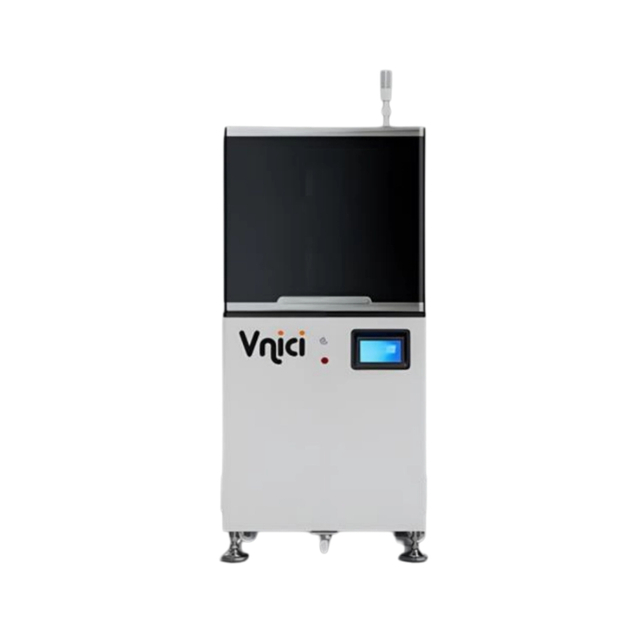

RayForm-4000

RayForm-400D

The RayForm-400D is a top-tier industrial DLP 3D printer designed for elastic footwear and high-volume production.

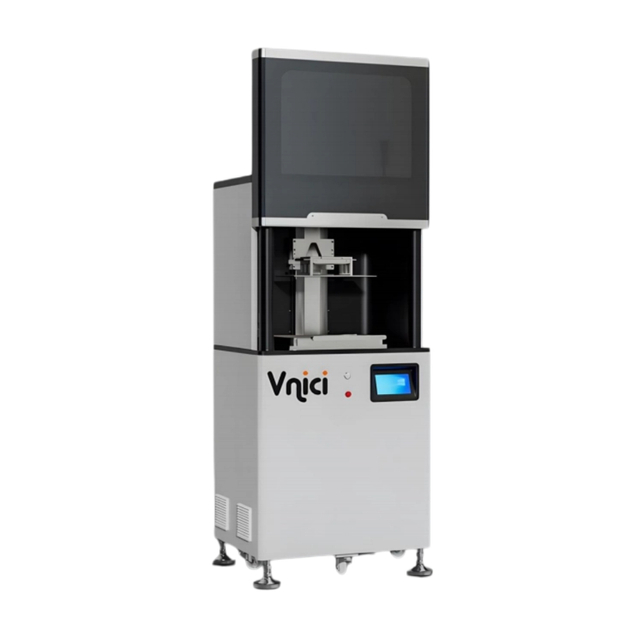

RayForm-400

RayForm-400

The DLP 3D Printer RayForm-400 is a large-format, industrial-grade printing system designed for high-precision and high-efficiency production.

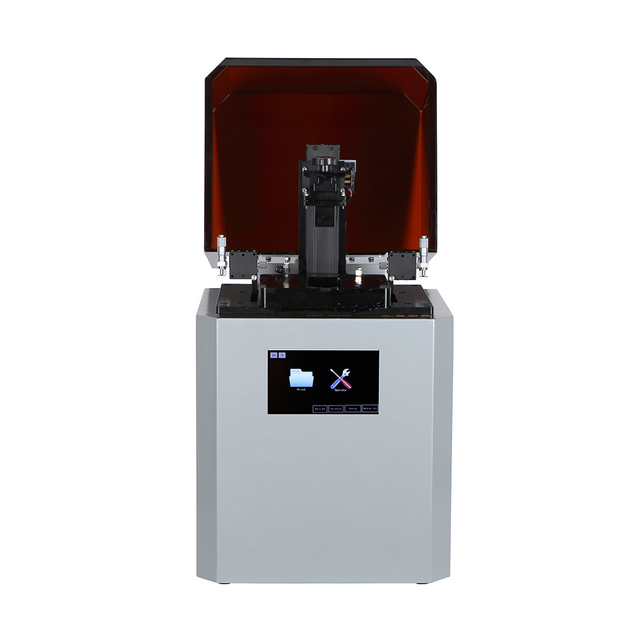

PM
