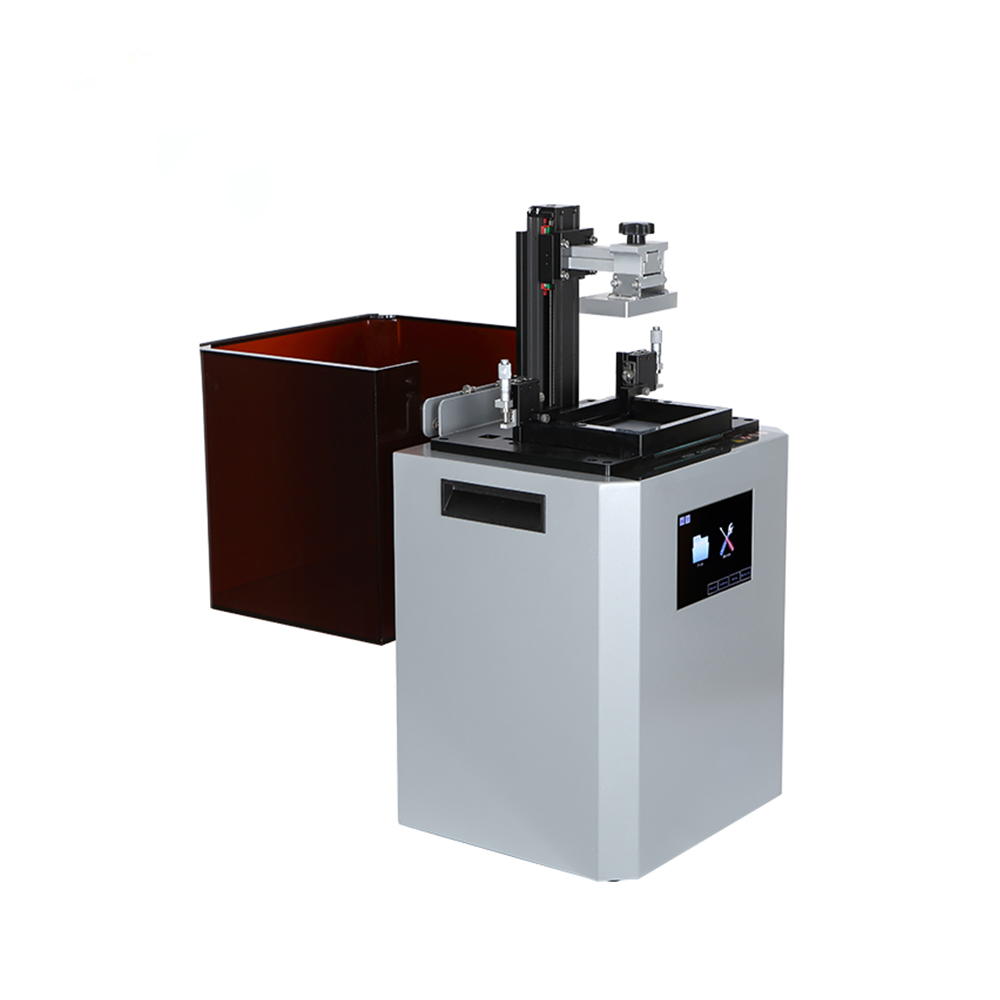

PM1

VNICI PM

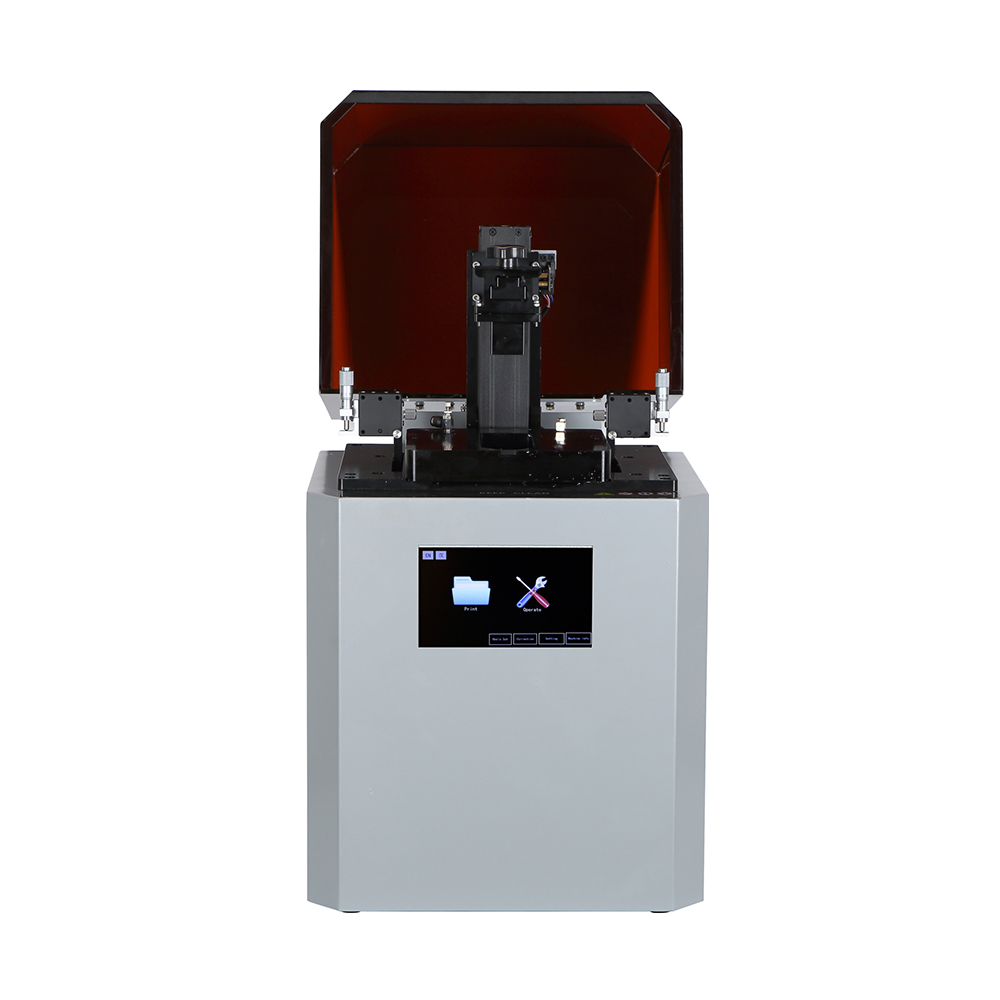

DLP 3D Printer PM

The DLP 3D Printer PM is an ultra-high-precision system designed for advanced material research and industrial applications, particularly ceramic printing and testing.


Powered by a Texas Instruments DLP projector and a UV light source at 405 nm or 385 nm, it delivers stable exposure and exceptional dimensional accuracy. A 7-inch touchscreen enables intuitive, standalone operation without the need for a connected computer, while offline printing is supported via USB.


The printer features self-developed slicing software with logo customization, encryption dongle support, and time-based machine locking to protect intellectual property and manage device usage. Designed for efficiency, the PM series offers low power consumption and supports long-term continuous operation without cooling downtime. With open resin compatibility, full parameter access, and a one-year warranty, the DLP 3D Printer PM provides a reliable, flexible, and professional solution for high-precision manufacturing.

Advantages of DLP 3D Printer PM

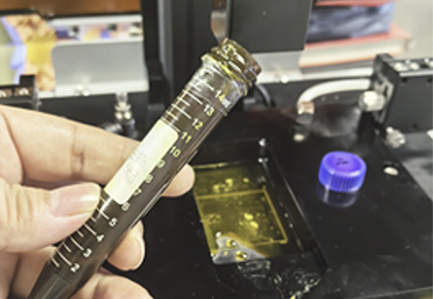

Ultra-Low Material Consumption

Ultra-Low Material Consumption

Printing can start with only 2–5 ml of resin, significantly reducing material consumption, ideal for high-value materials.

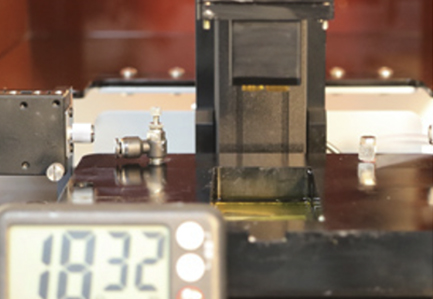

CLIPS Continuous High-Speed Printing

CLIPS Continuous High-Speed Printing

CLIPS continuous liquid interface printing enables stable, high-speed fabrication, helping preserve biological activity.

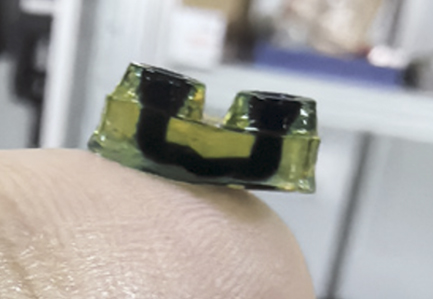

Zero Separation Force Precision Printing

Zero Separation Force Precision Printing

Zero separation force allows precise printing of microfluidic and delicate structures with reduced risk of deformation.

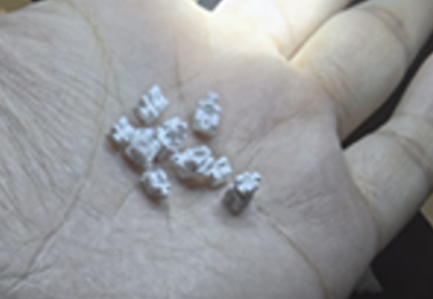

High Solid-Content Ceramic Printing

High Solid-Content Ceramic Printing

With blade recoating, oxygen-permeable release, and ultra-high light energy, the system enables stable printing of various high solid-content ceramic materials.

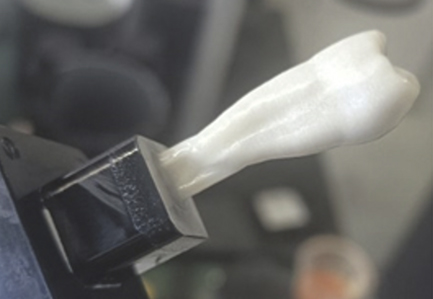

Bioceramic & Composite Applications

Bioceramic & Composite Applications

Supports materials such as 80 wt% nano zirconia and 70 wt% hydroxyapatite (HAP) and HAP + tricalcium phosphate (TCP) composites for medical and research applications.

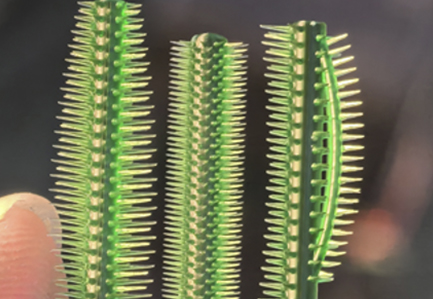

Ultra-Fine Microstructure Printing

Ultra-Fine Microstructure Printing

Capable of printing ultra-fine structures including 200 μm microfluidic channels, 80 μm unsupported tips, and microneedle patches.


Key Features of DLP 3D Printer PM

correction

Standalone Operation (No PC Required)

No computer connection required; supports offline printing via USB drive and WiFi .

3d-printing (2)

Flexible Printing Mode Switching

Different printing modes can be switched directly through parameter settings.
test (3)

Rapid Curing Parameter Testing

Supports rapid curing tests, allowing multiple parameter sets to be tested in a short time.
touch-screen

Touchscreen Parameter Editing & Storage

Print parameters can be modified and saved directly via the touchscreen.
clock

Real-Time Parameter Adjustment

Print parameters can be adjusted in real time during the printing process.

Technical Specifications of DLP 3D Printer PM

ItemSpecification
ModelVnici-PM
TechnologyDLP (Texas Instruments DLP technology)
Resin Supportresin, ceramic slurry, bio-ink, hydrogel
Illuminant405nm/385nm UV-LED
Resolution Ratio1920x1080
XY Accuracy10μm/15μm/25μ m
Depth10-50μ m
Stamp With The Size20*11*100mm/28*16*100mm/48*27*100mm
Maximum Optical Power300 /200/130 mw/cm2
Release Technologyperoxi-lysis
Material Placement MethodAdjustable scraper assisted spreading
Device Size25KG , 42x35x75cm

Start A Project With Us

Why Choose VNICI As Your Ultrahigh Speed 3D Printer Supplier?

Core-Technology

Core Technology

Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.
Industrial-Solutions

Industrial Solutions

We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.
DM_20260611160809_001

Good after-sales service

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.
DM_20260611160810_001

Fast Delivery

We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.

DLP 3D Printer PM FAQ

  • Can I use my own logo or design on the products?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we offer OEM/ODM services; your logo and design can be created on the products.

  • Do you have a factory?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and provide OEM/ODM services to our customers.

  • What is your factory's production capacity?

    加 Created with Sketch.
    形状 Created with Sketch.

    Our production capacity is equivalent to 2,000 3d printers per month and 20 tons resins per month.

  • What is the pricing information for your products?

    加 Created with Sketch.
    形状 Created with Sketch.

    Hello! How can I assist you today? What products are you interested in? Please let me know your needs, and we can discuss further.

  • What brand of laser do you use?

    加 Created with Sketch.
    形状 Created with Sketch.

    We use AOC laser. What brand of laser do you prefer?

  • What brand of scanner do you use?

    加 Created with Sketch.
    形状 Created with Sketch.

    We use Hans scanner or Scanlab Scanner. Which one do you prefer?

Related Products

D1

D1

Built with a thickened metal Z-axis and a reinforced all-metal structure, D1 delivers exceptional printing stability while reducing layer lines for smoother surfaces.
D300

D300

DLP 3D Printer D300 is a high-precision, energy-efficient industrial resin printer designed for stable batch production and versatile working environments.

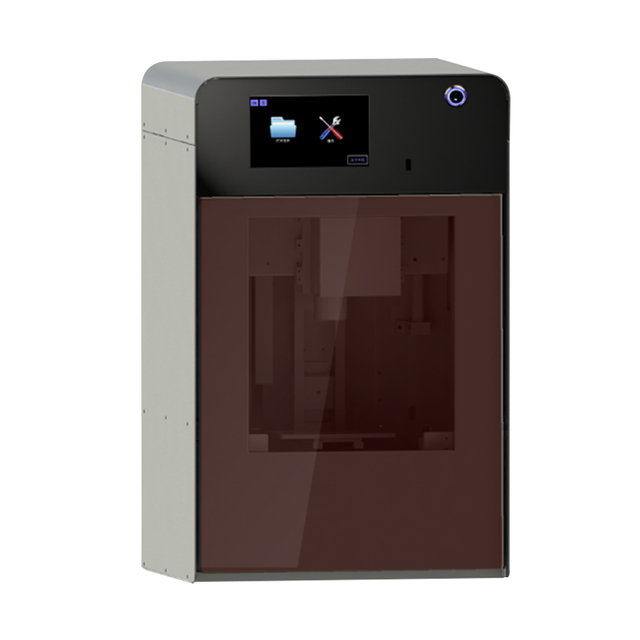

MD
