SLA 3D Printer 1200

Dual Galvanometers·Dual Lasers·High -end Configuration

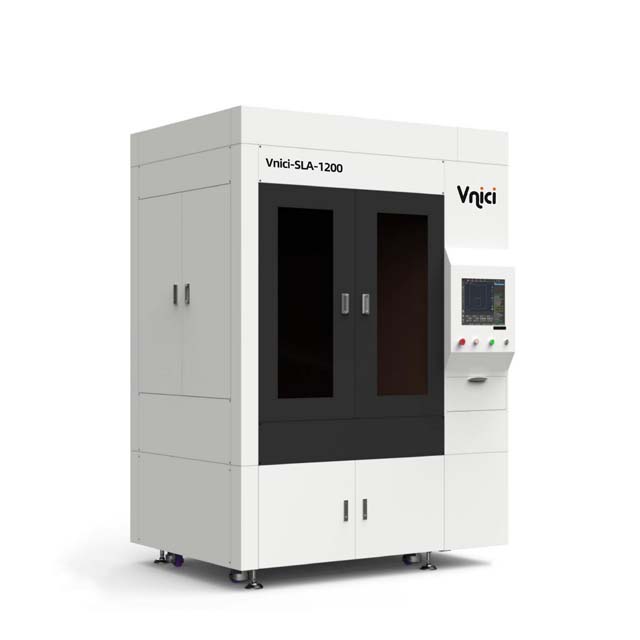

白底1

VNICI SLA-1200

Industrial SLA 3D Printer 1200

Industrial-grade SLA (Stereolithography) 3D Printer

SLA Industrial 3D Printer 1200 is a high-end large-format stereolithography system designed for industrial-grade precision and high-efficiency production. Featuring dual galvanometers and dual independently controlled lasers, the SLA-1200 significantly reduces scanning time while improving edge forming speed, ensuring stable and accurate results even in large batch printing.

With a maximum forming size of 1200 × 600 × 500 mm, intelligent coating technology, and variable laser spot control down to 0.06 mm, it delivers exceptional surface quality, fine details, and reliable consistency. Compatible with a wide range of engineering and functional resins, the SLA-1200 is an ideal solution for demanding applications across automotive, aerospace, medical, dental, and industrial manufacturing sectors.

Advantages of SLA Industrial 3D Printer 1200

cursor-finger-click

One - click Startup

skin-laser

Dual Galvanometers & Dual Lasers

sensor-on

Laser Online Inspection

scanner-image

High - precision Sensors

palette

Full - process Intelligent Coating

print

One - click Intelligent Printing

Key Features of SLA Industrial 3D Printer 1200

easy-installation (1)

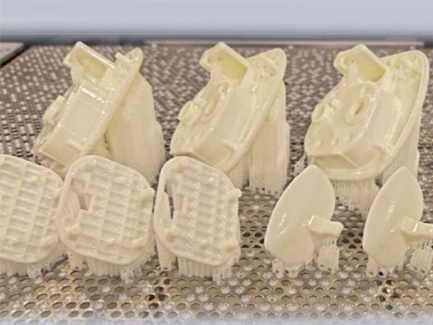

Micro-contact Support Smooth Surface And Easy To Remove

One-press falling -Removal efficiency increased by 5 times
Nano-level contact points -Support traces invisible
Factory-evel surface -Grinding process saved
Micro-contact Support Smooth Surface And
laser

SLA Laser Technology

The spot diameter can be freely switched within
the range of 0.06-0.2mm to achieve a variable
spot mode.It greatly improves the printing efficiency and meets the requirements of high efficiency.
link-horizontal

Dual Galvanometers & Dual Lasers

Dual lasers are independently controlled,and the scanning time of the working area division is reduced by 50%.
The galvanometer blind area compensation technology increases the edge forming speed by 80%.
badge-check

Breakthrough Advancements In Print Quality

High-precision liquid level sensors and precision machining calibration are suitable for batch printing.They support multi-part duplicate and one -click intelligent automatic typesetting,which can quickly improve printing efficiency.
SLA Laser Technology
cube (2)

Large Dimensions Meets Your Production Needs

1200*600*500mm,A Larger Printing Space;Maximum Forming Size1200*600*500mm.
precision

Negative Pressure Adsorption Precision Scraping

High precision,with built-in liquid level detection
to ensure the measurement and control of printing stability.
apps (1)

Compatible With Multiple Materials

To Meet Your Different Needs

It supports a variety of performance consumables
to meet the needs of different materials and the needs of customers in various industries for material particularity.

Technical Specifications of SLA Industrial 3D Printer 1200

ModelVnici-SLA-1200Laser Power5W@50KHZ
Forming Dimensions1200*600*500mmScanning SystemGalvanometer
Equipment1980*1560*2400CoatingIntelligent Vacuum
DimensionsmmSystemAdsorption
Net Weight1300KGCoating Thickness Accuracy0.03-0.1mm Rapid0.1-0.25mm
Resin Volume2200KGMotorHigh-precision Servo Motor
Forming Speed≤400 G/HRepeat Positioning Accuracy±0.01mm
Maximum Part Weight80KGReference PlatformMarble
ScanningVariable PointOperatingWin7 Or Above
MethodScanningSystem
ResinAmbient
HeatingTemperature Hot Air HeatingControl
Method(Optional)SoftwareVnici V2.0
ScanningMaximum STL/SLC Format
Speed12M/SFile Format
Auxiliary Storage Water TankIncludedNetwork TypeEthernet/Wireless Network
Resin Material Type355nmPower Supply110-220V,50-60HZ
Laser TypeDiode-Pumped Solid-State Laser Nd:YVO₄Ambient Temperature24-28℃/35-45
Spot Diameter0.06-0.2mmPrinting Accuracy0.001MM
Forming Accuracy±0.1mm(Length≤100mm),±0.1%XL (Length≥100mm)

Start A Project With Us

Applications of SLA Industrial 3D Printer 1200

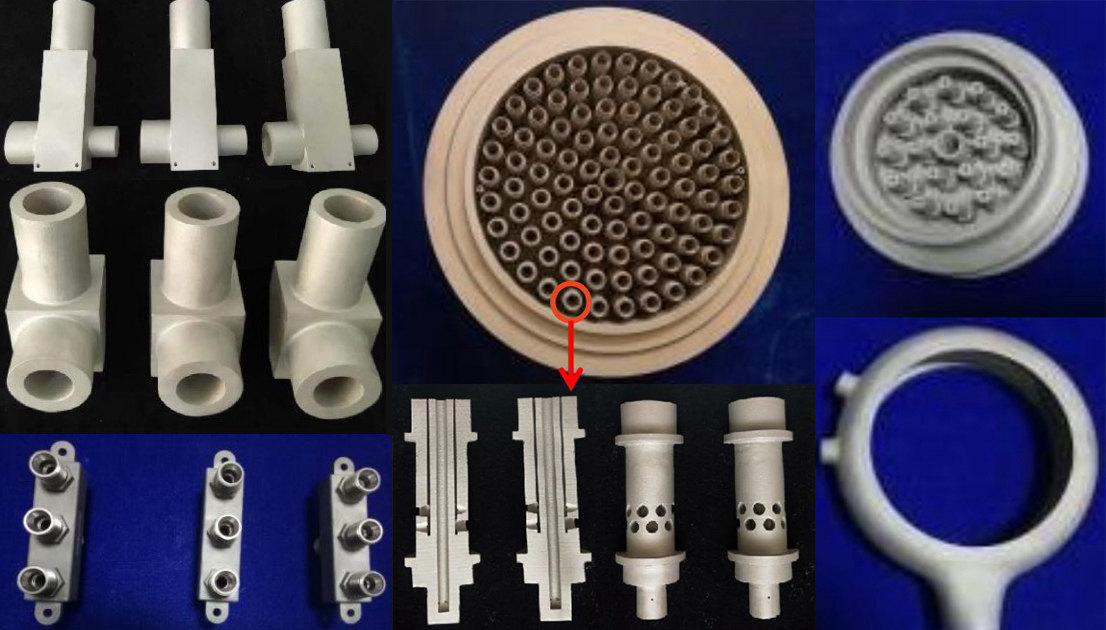

Aerospace Industry
Dental Industry

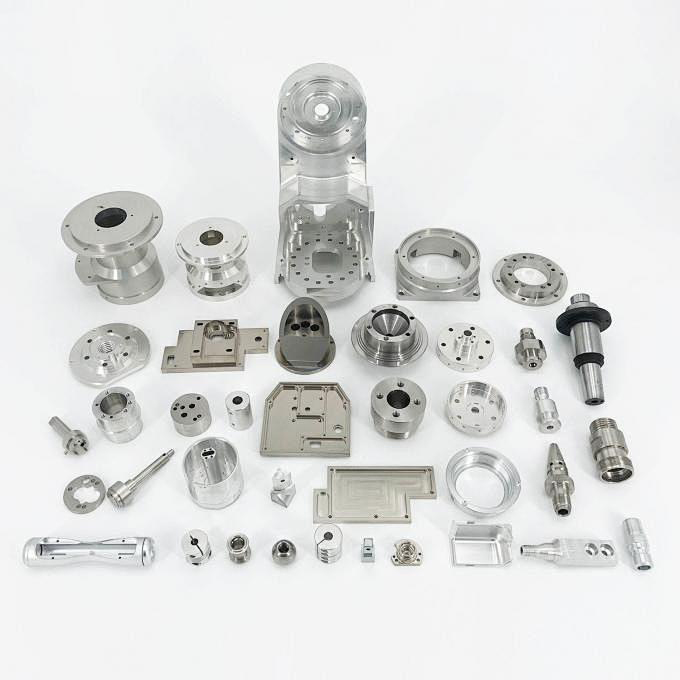

Automotive Industry

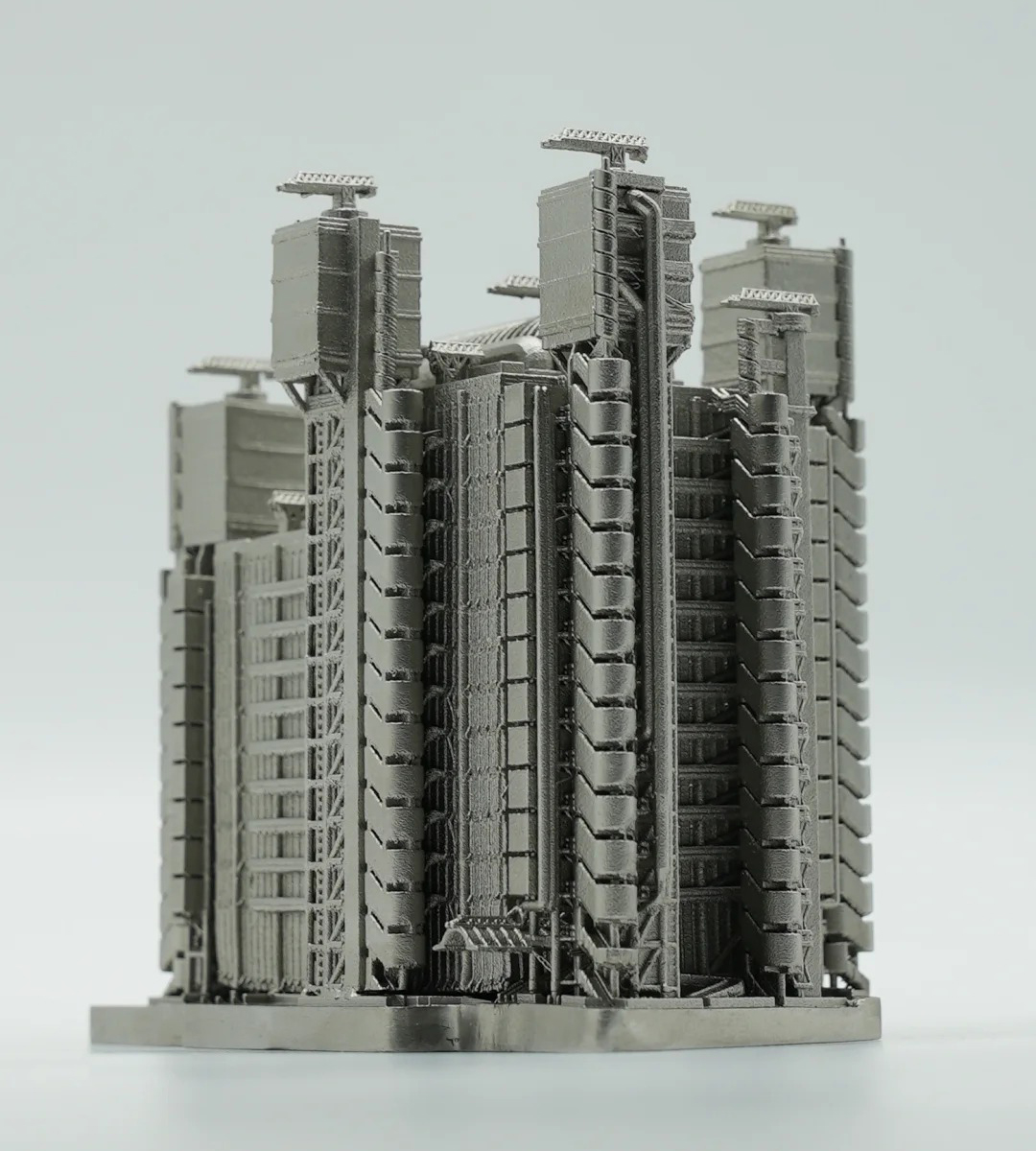

Construction Industry

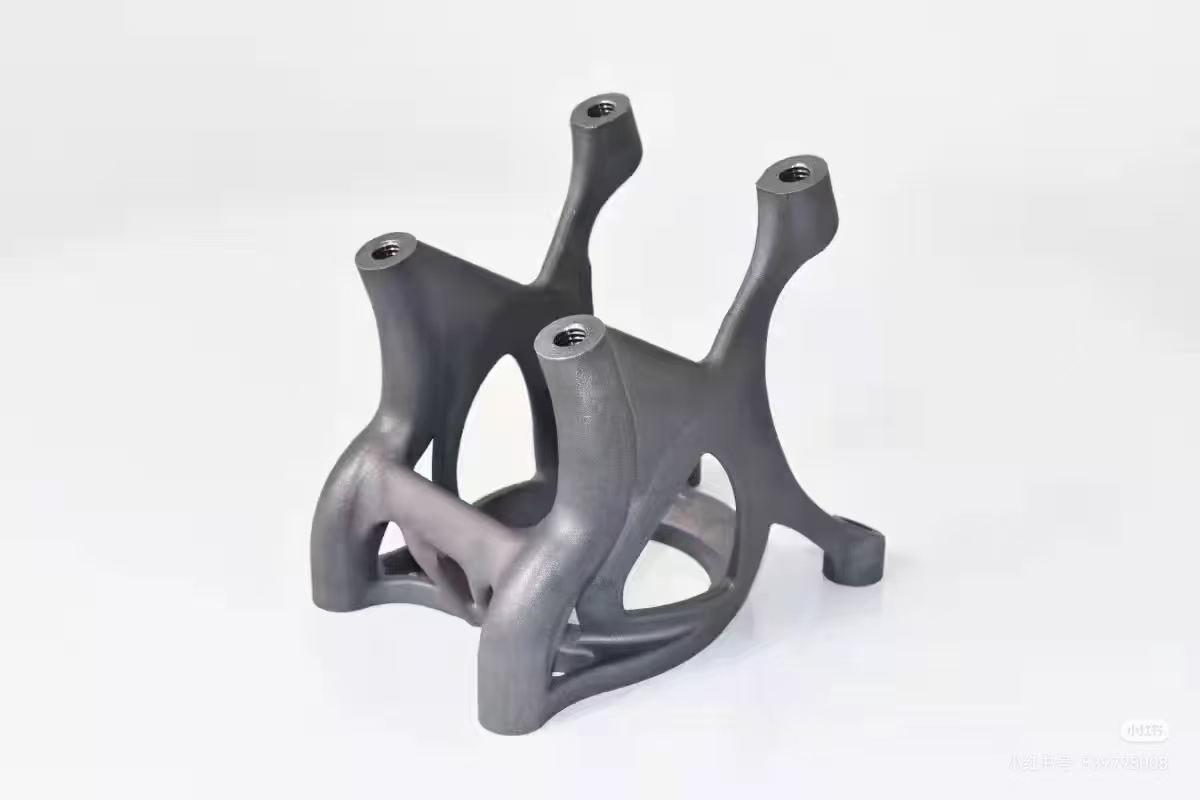

Foundry-Industry

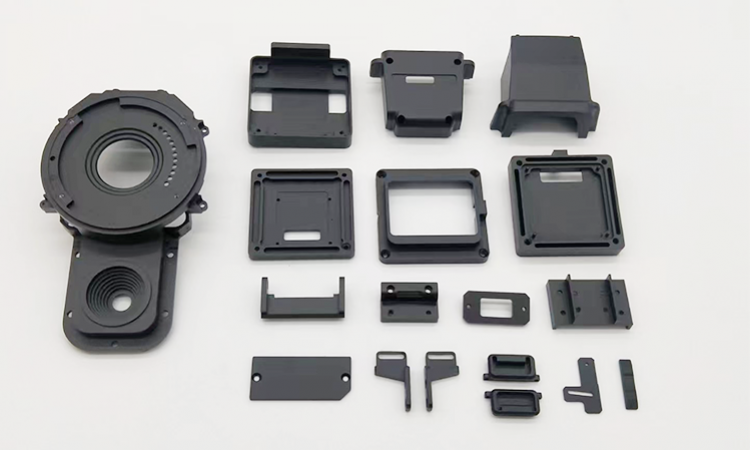

Mechanical Equipment

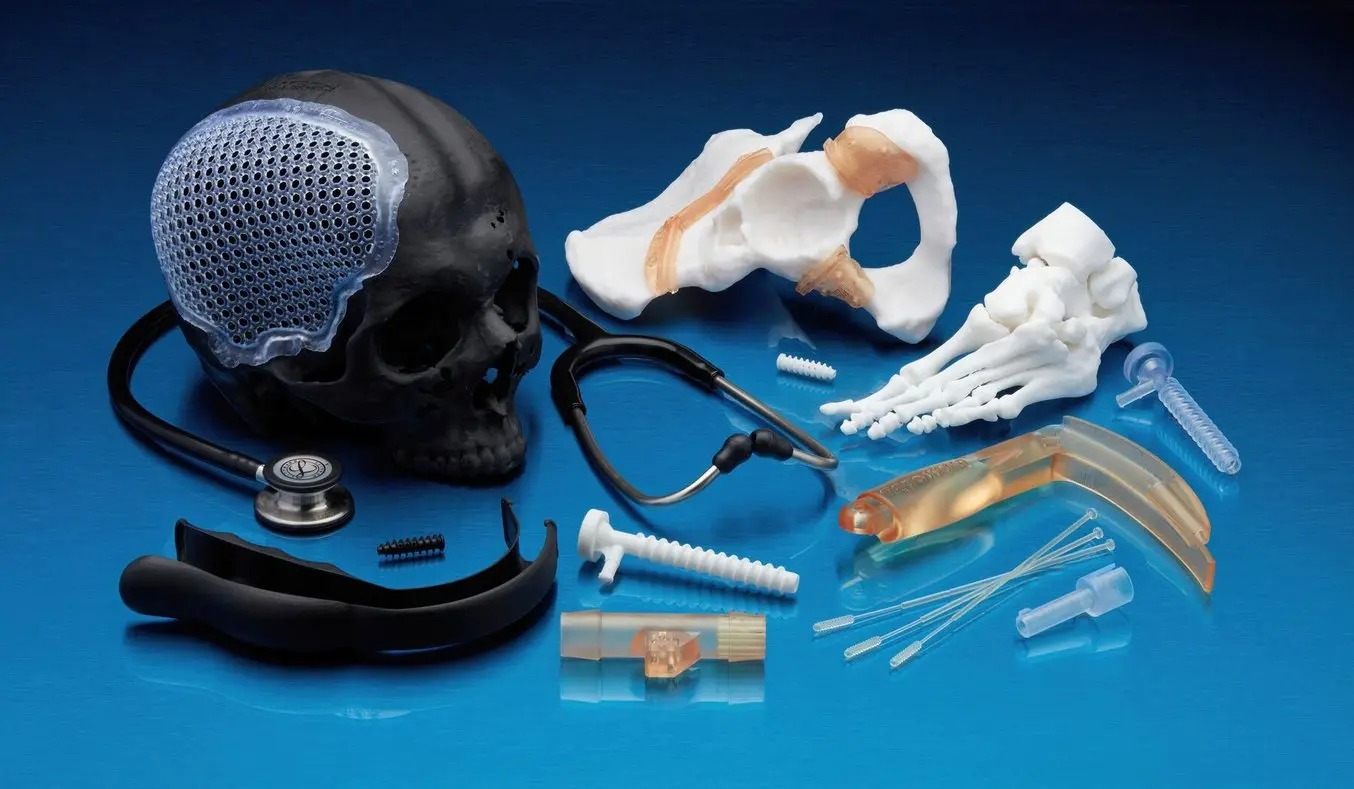

Medical Industry

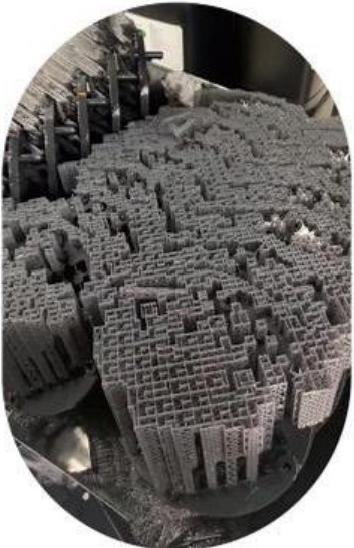

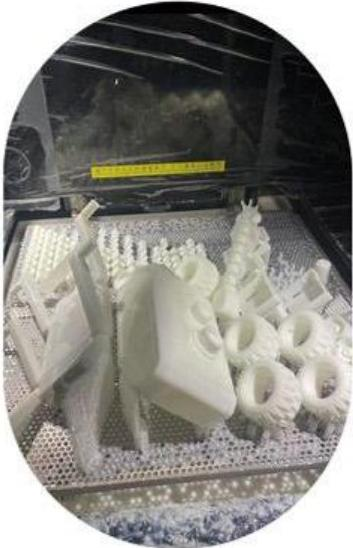

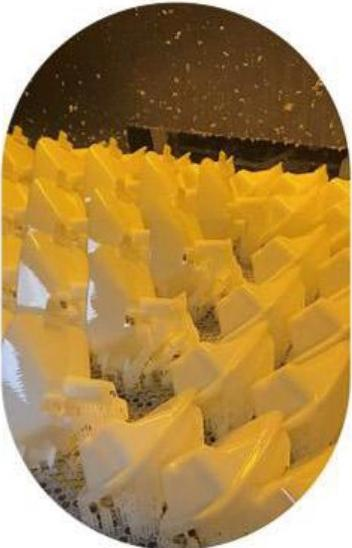

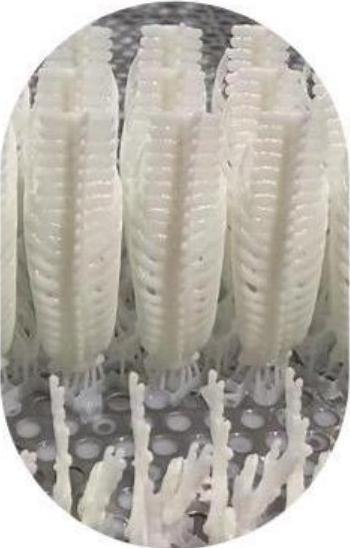

Sample Gallery of SLA Industrial 3D Printer 1200


Why Choose VNICI As Your Industrial 3D Printer Supplier?

DM_20260611160807_001

Core Technology

Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.
DM_20260611160808_001

Industrial Solutions

We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.
DM_20260611160809_001

Good after-sales service

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.
DM_20260611160810_001

Fast Delivery

We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.

SLA Industrial 3D Printer 1200 FAQ

  • How do we ensure the laser spot is accurately positioned on the platform?

    加 Created with Sketch.
    形状 Created with Sketch.

    To ensure precision, we place a calibration plate on the platform to verify and adjust the position of the laser spot before starting the print process. This ensures consistent printing accuracy.

  • Does the SLA-1200 use an F-theta lens attached to the Scanlab scanner?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, the SLA-1200 uses an F-theta lens in combination with the Scanlab scanner , ensuring optimal focus and high-quality prints.

  • How do we calibrate the platform for the SLA-1200, and how can we ensure the laser spot is correctly positioned?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 is calibrated before shipment , but you will need to purchase a calibration board along with the machine. Our engineers will provide training to ensure accurate calibration and laser spot alignment.

  • What types of resin are available for sale for private and business customers?

    加 Created with Sketch.
    形状 Created with Sketch.

    We offer a variety of resins for both private and business customers . Our sales team can provide a professional recommendation based on your specific needs.

  • What warranty does the SLA-1200 come with, and what does it include?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 comes with a 1-year warranty , including 24-hour online technical support . We offer free troubleshooting and support during the warranty period.

  • Does the SLA-1200 accept payments in installments?

    加 Created with Sketch.
    形状 Created with Sketch.

    Unfortunately, we do not offer installment payment plans . Payment for the SLA-1200 must be made in full.

  • Can I receive videos and an explanation of how the SLA-1200 works?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we can provide detailed videos and a thorough explanation of how the SLA-1200 operates. Please contact us for more information.

  • What slicing software is used with the SLA-1200?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 supports slicing software like Voxeldance Additive (China) and Materialise Magics (Belgium), which are both popular for creating optimal print paths for SLA 3D printing.

  • What accessories are included with the SLA-1200 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 comes with a full set of accessories . For more details and images of the included accessories, please contact our sales team.

  • What is the operating system for the SLA-1200?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA- 800 uses our own operating software , designed to maximize printing accuracy and ease of use, specifically for industrial applications.

  • Is there an English version of the software for the SLA-1200?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, the software for the SLA-1200 is available in English , making it accessible to a global customer base.

  • What is the controller software for the SLA-1200?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 is powered by custom software , developed specifically to control and optimize the machine’s performance. This software ensures smooth and efficient operation tailored to the needs of industrial users.

  • What type of motor is used in the SLA-1200 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 features a servo motor , which provides highly accurate and reliable motion control during the 3D printing process.

  • Is the resin tank of the SLA-1200 3D printer replaceable?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, the resin tank of the SLA-1200 is replaceable , allowing for easy maintenance and ensuring consistent print quality over time.

  • What is the laser power of the SLA-1200 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 operates with a 5-watt laser , which is ideal for precise and detailed prints in industrial-grade 3D printing applications.

  • What kind of laser does the SLA-1200 3D printer use?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 is equipped with a ND:YVO4 laser , a reliable and popular laser type for industrial SLA 3D printers. The common laser brand used is AOC , known for its high performance and stability.

  • What type of scanner is used in the industrial SLA-1200 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA- 1200 3D printer utilizes a high-speed galvanometer scanner , commonly from well-known brands like Scanlab (Germany) and Hans (China) , ensuring high precision and speed during the printing process.

  • What is the resin tank capacity of the SLA-1200 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1200 has a resin tank capacity of 1200 kg.
