SLA 3D Printer 360

Accelerate Prototype Iteration

Enhance New Product Development Efficiency

DM_20260611143257_001
DM_20260611143259_001
DM_20260611143258_001
DM_20260611143308_001
DM_20260611143302_001
DM_20260611143301_001

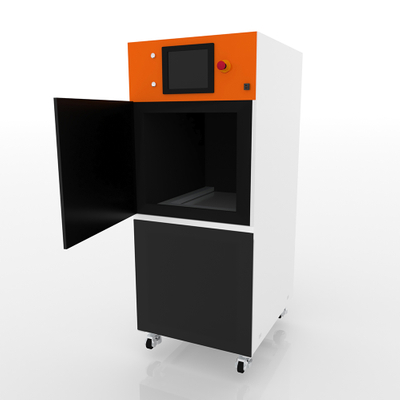

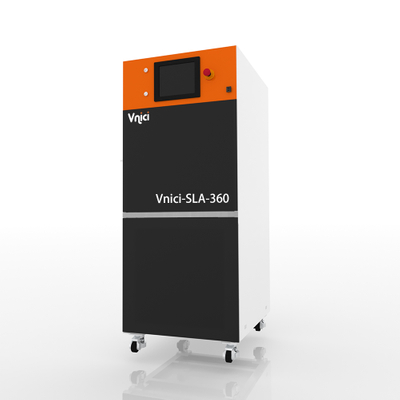

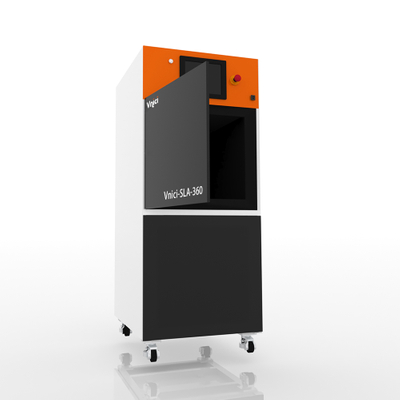

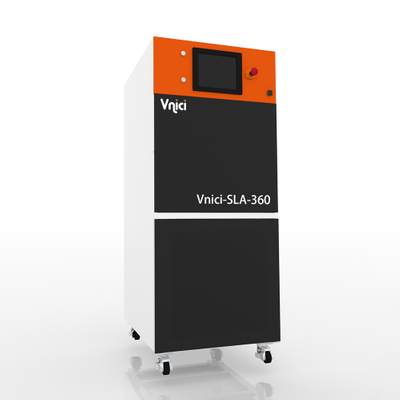

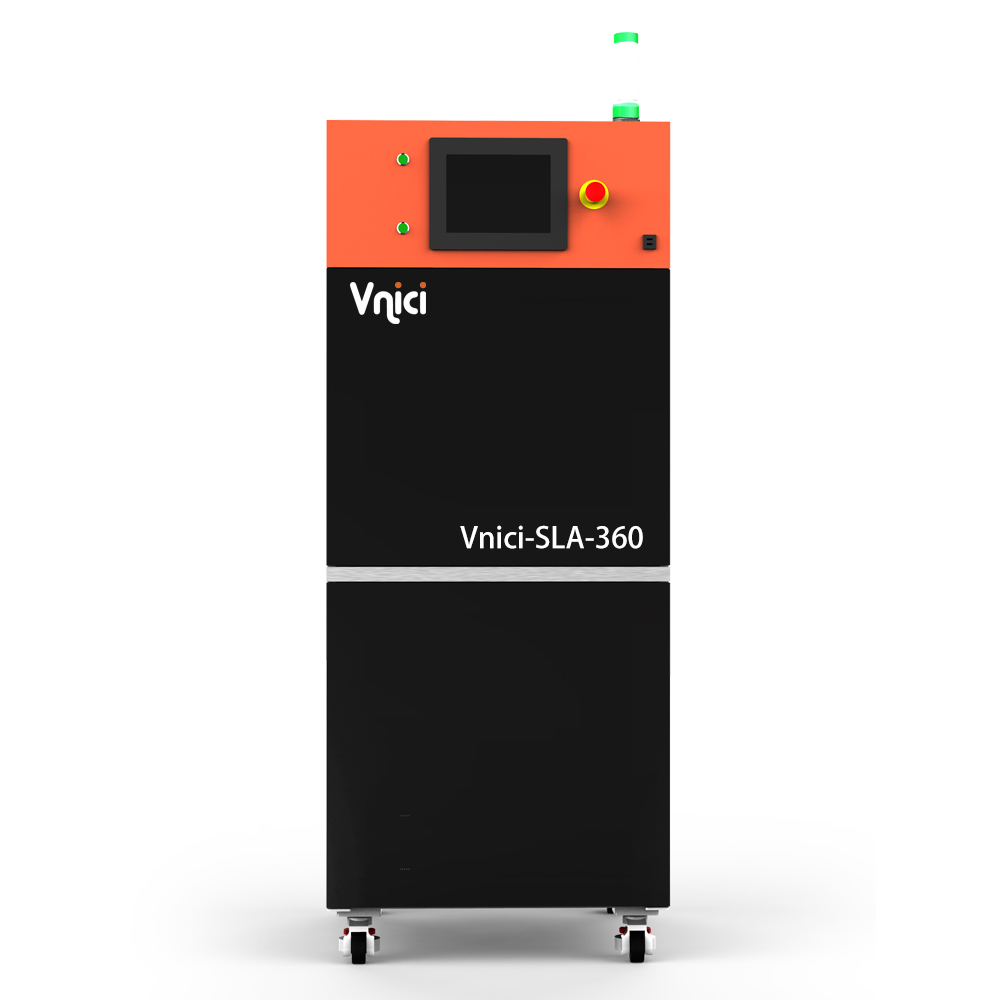

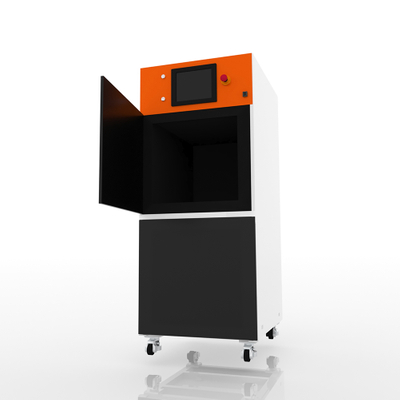

VNICI SLA-360

Industrial SLA 3D Printer 360

Industrial-grade SLA (Stereolithography) 3D Printer

"Serving as a 'technology R&D accelerator', it expedites prototype iteration and enhances new product development efficiency."


Target users: R&D departments, laboratories, design studios and other scenarios requiring rapid design validation.

Overall impression:A compact, flexibly deployable and user-friendly industrial-grade SLA printer designed to lower barriers and boost efficiency in driving R&D innovation.

Industrial SLA 3D Printer 360

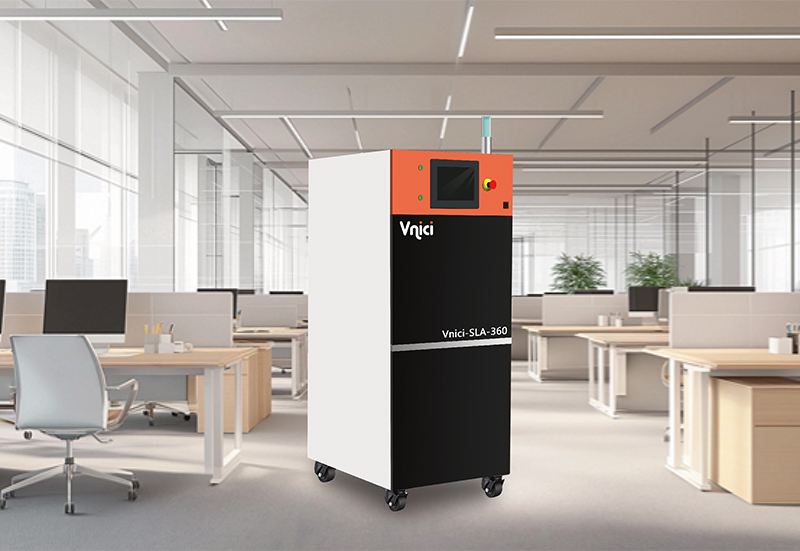

Key Features of Industrial SLA 3D Printer 360

DM_20260611143310_001
bulb (1)

Specifically Designed For R&D Acceleration

The core objective is to shorten development cycles and control costs. Promotional materials utilise data charts to emphasise that, compared to traditional machining, it significantly enhances R&D efficiency while reducing expenses.
apps (1)

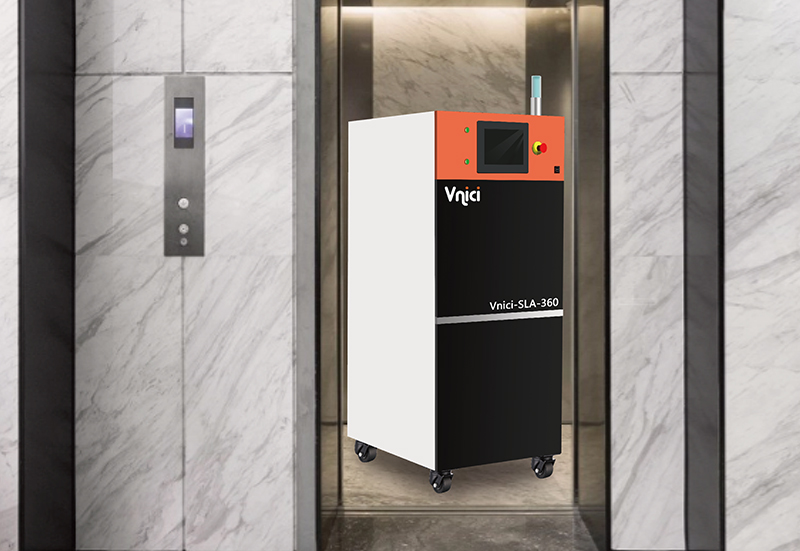

Compact And Flexible, Office-Friendly

With its compact dimensions (700 × 800 × 1700 mm) and lightweight construction (320 kg), it easily fits into commercial lifts, offices, and laboratories for rapid deployment.
comments

Moderate Build Volume

The build chamber measures 360 × 360 × 300 mm, sufficiently accommodating most R&D prototypes and sample parts.
DM_20260611143311_001
badge-check

High Precision with Premium Surface Finish

Printing tolerances of ±0.1mm ensure accuracy for assembly verification.
Stereolithography technology delivers smooth surfaces with minimal layer lines, achieving quality comparable to injection-moulded products.
refresh

Simple Operation With Rapid Familiarisation

Structural engineers can become proficient within approximately six hours.
An intelligent control system offers features such as estimated print time, one-touch printing, and smart layout optimisation, streamlining workflows.
link-horizontal

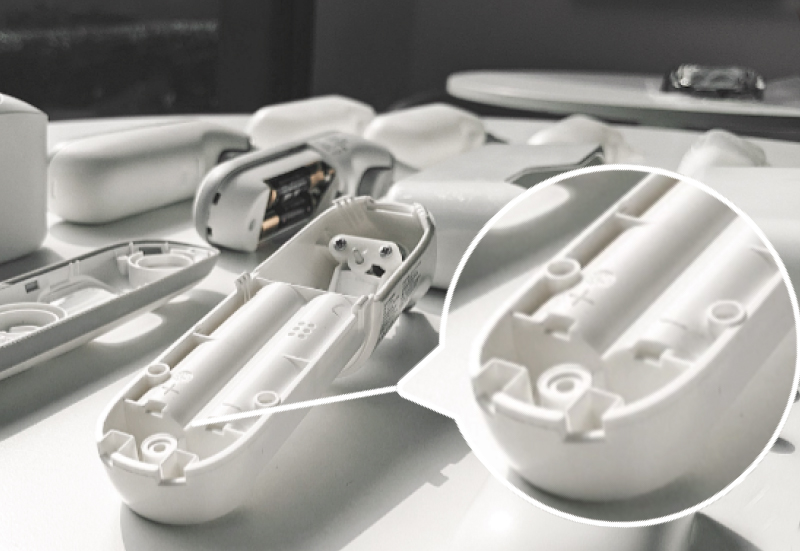

High Printing Efficiency

Provides concrete efficiency improvement data (e.g., 43%-78% efficiency gains), demonstrating its ability to rapidly transform concepts into physical prototypes and accelerate validation cycles.
DM_20260611145851_001
layers

Extensive Material Compatibility

Supports diverse materials including engineering resins, high-temperature-resistant resins, and transparent resins, meeting R&D testing requirements for varied material properties.
tachometer-fastest

Intelligent Control System

Features advanced functionalities akin to higher-tier models, such as real-time monitoring, intelligent layout, parameter presets, and cost calculation, enhancing device usability and stability.

Technical Specifications of Industrial SLA 3D Printer 360

SpecificationsModetVnici-SLA-360
Appearance Dimensions700*800*1700mm
Net Weight320KG
ModetVnici-SLA-360
Laser SystemAppearance Dimensions700*800*1700mm
Net Weight320KG
Machine Power350W
Laser Power3W
0ptical Scanning SystemSpot Diameter0.06-0.8mm
Scanning SystemHigh -speed Galvanometer Scanning System
Part Scanning SpeedRecommended 6m/s
Jumping Speed Of PartsRecommended 10m/s
Reference Production Speed200-500g/h
Coating SystemCoating MethodPrecision Positioning-Vacuum Adsorption
Normal Layer Thickness0.1mm
Rapid Layer Thickness0.15mm
Precision Layer Thickness0.05mm
Characteristic Layer Thickness0.05mm-0.15mm(Selectable)
Resin TankResin Tank CapacityApproximately75kg
Maximum Forming Size360*360*300mm
Lifting SystemBasic PlatformCasting Reference Platform
Repeat Positioning Accuracy±0.01mm
Maximum Part Weight8kg

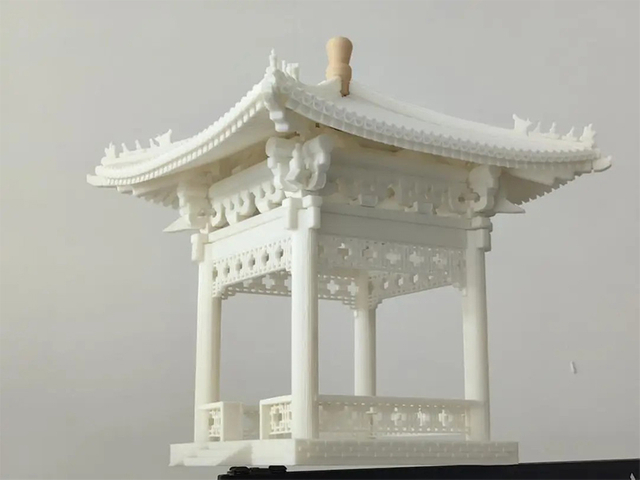

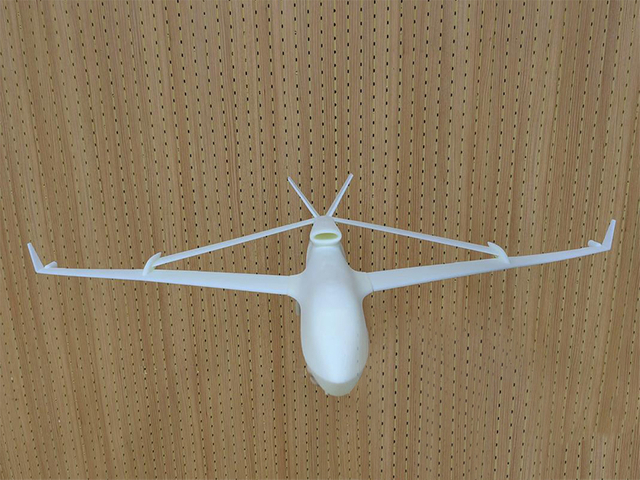

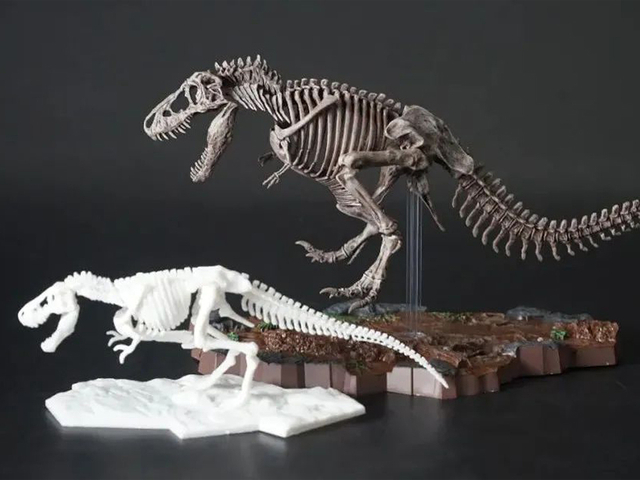

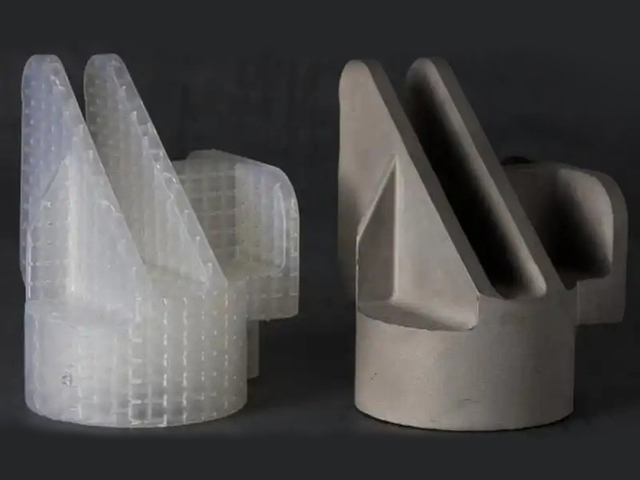

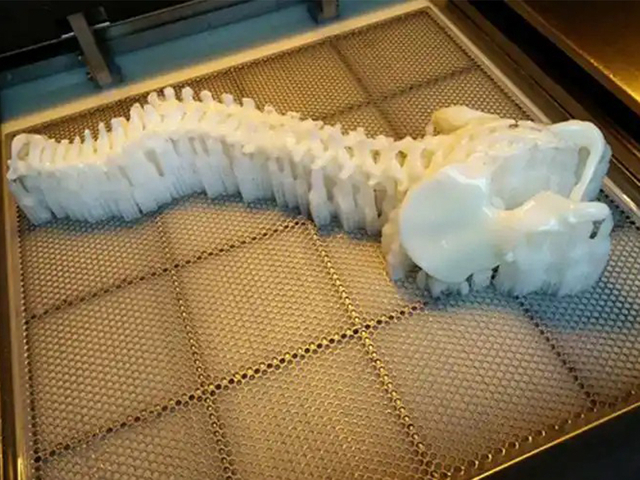

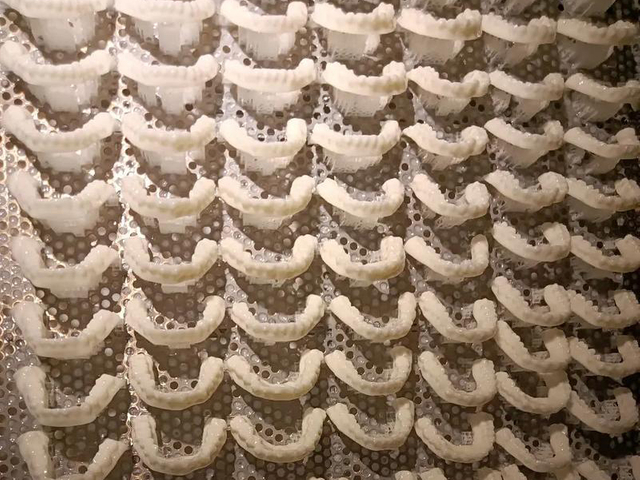

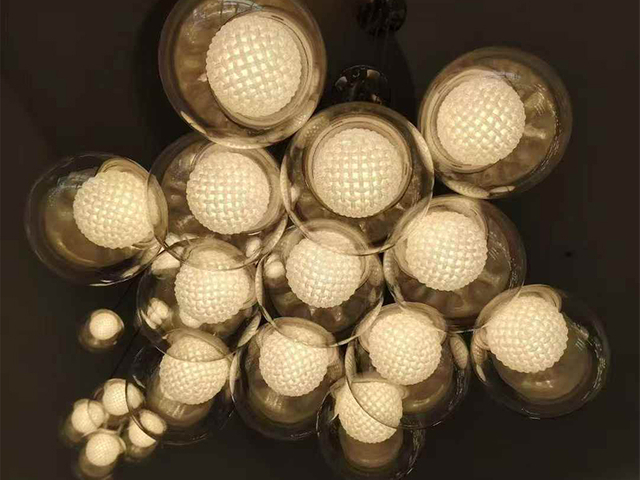

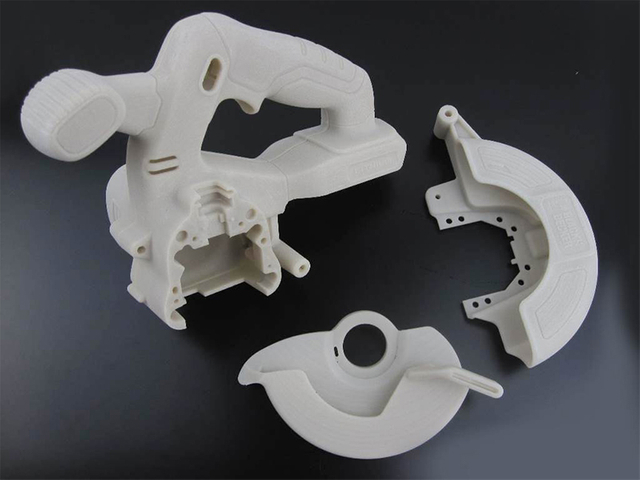

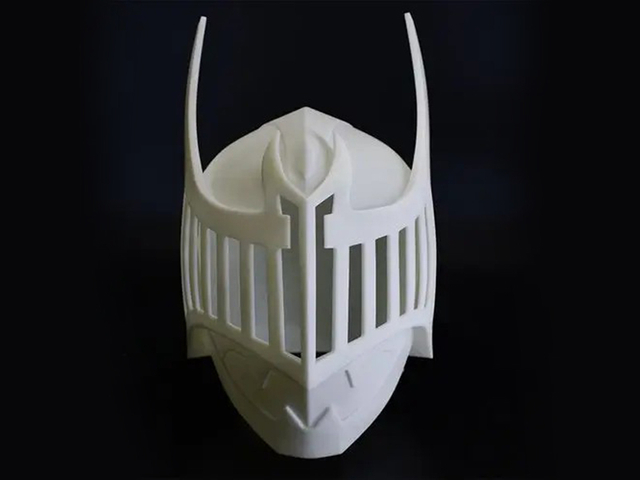

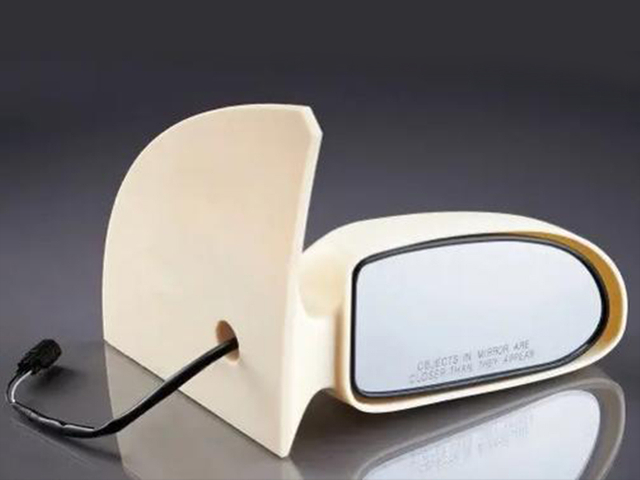

Applications of Industrial SLA 3D Printer 360

DM_20260611151009_001
DM_20260611151010_001
DM_20260611151011_001
DM_20260611151011_001 (1)
DM_20260611151013_001
DM_20260611151014_001
DM_20260611151016_001
DM_20260611153650_001
DM_20260611151018_001
DM_20260611151021_001

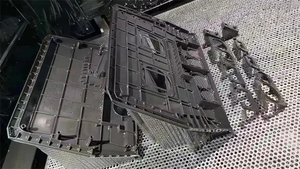

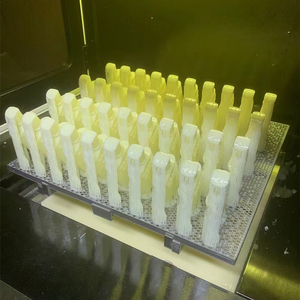

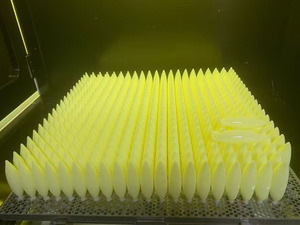

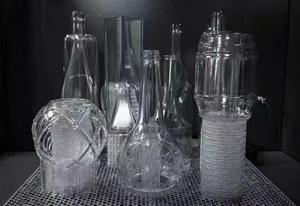

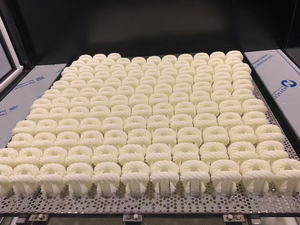

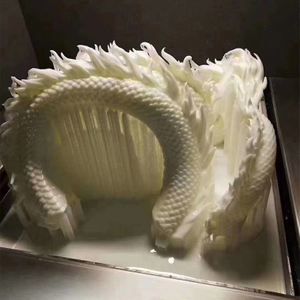

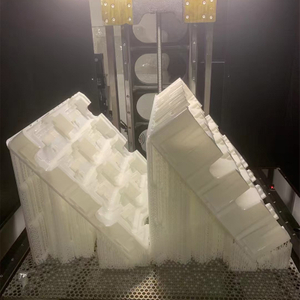

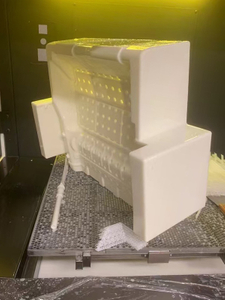

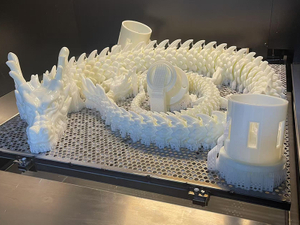

Sample Gallery of Industrial SLA 3D Printer

DM_20260611153855_001
DM_20260611153856_001
DM_20260611153857_001
DM_20260611153859_001
DM_20260611153900_001
DM_20260611154219_001
DM_20260611154220_001
DM_20260611154221_001
DM_20260611154222_001
DM_20260611154223_001

Industrial SLA 3D Printer 360 Catalogue

Vnici SLA 3D Printer 360 Catalogue.pdf

30.22MB

1

pdf

Packaging & Delivery of Industrial SLA 3D Printer 360

Each SLA 3D printer is carefully packed with protective foam and exported wooden box to ensure safety during international shipment.

Standard lead time: 15–25 working days.

1.Packaging

Logistics Packaging Components

1.Wooden Crate

The assembled 3D printer (excluding the industrial control computer and laser unit) is secured within the wooden crate using bolts and nuts. It is then packaged for shipment, requiring forklift assistance during loading and unloading.

2. Industrial Control Computer

The industrial control computer comprises the main unit and monitor. The monitor is detached, padded with foam, and shipped in a cardboard box.

3. Laser Unit

The laser unit comprises the emitter and control box. The laser is detached, internally padded with foam, and shipped in a cardboard box.

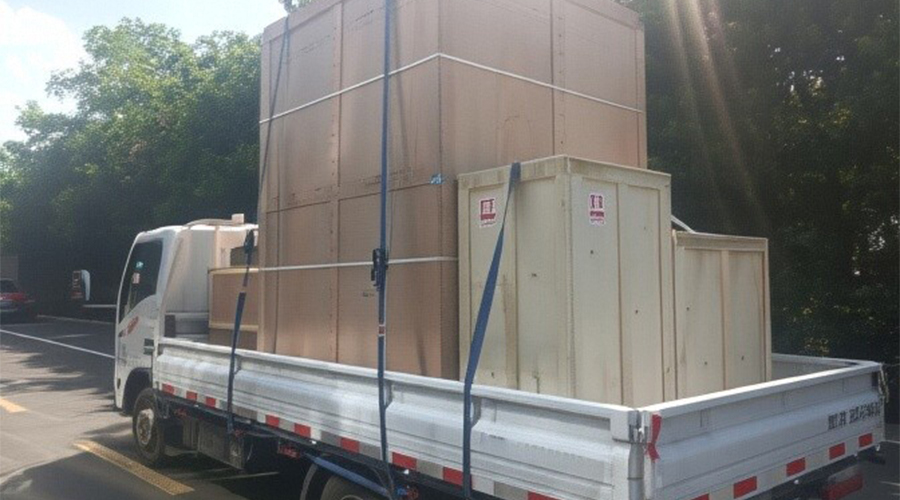

2.Transportation

Equipment Dimensions
Machine dimensions (rounded, with warning lights lowered):
700 (L) × 860 (W) × 1720 (H) mm
DM_20260611155347_001

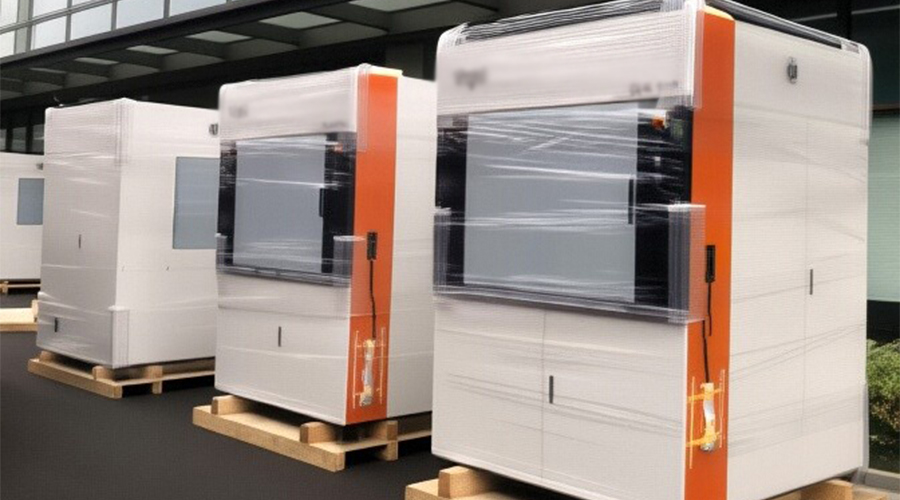

3.Packaging Crate Management

During transit to the customer, the machine is enclosed in a dedicated packaging crate for secure transport. Please adhere to the procedures outlined in this chapter for the correct handling, movement, and storage of the packaging crate.
*Important Notes:Do not attempt to open the packaging crate yourself. Our technical personnel must be present on-site to open the crate.
DM_20260611155345_001

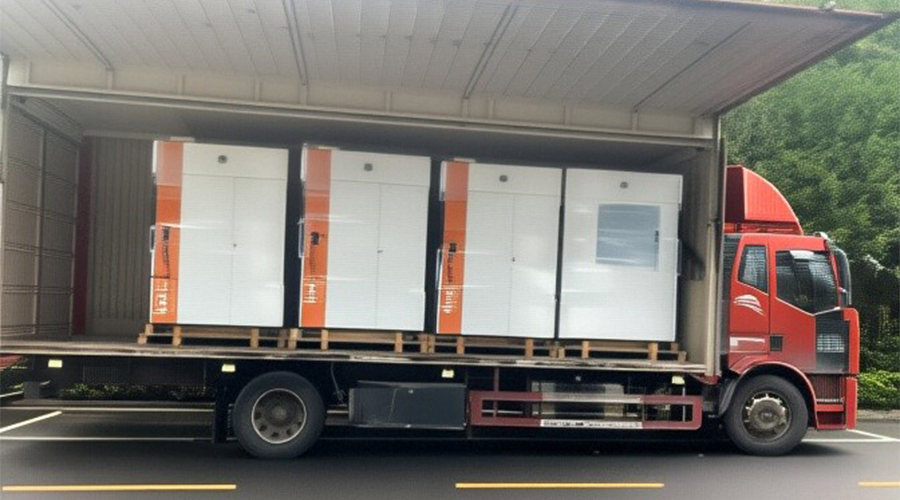

4.Acceptance and Storage of Packaging Crates

Upon receipt of the packaging crate, the customer must immediately inspect its condition. Should any damage be detected, the relevant issues must be promptly reported to our company personnel and the transport team before the crate is transported to the installation site or opened.

Components of the 3D printer must be stored in their packaging boxes.


*Should temporary storage of the packaging boxes be required, this must be undertaken in a dry indoor environment with adequate protective measures. Please note: Storage temperature must be maintained between 0°C and 50°C, with relative humidity below 75%.

DM_20260611155348_001
DM_20260611155352_001

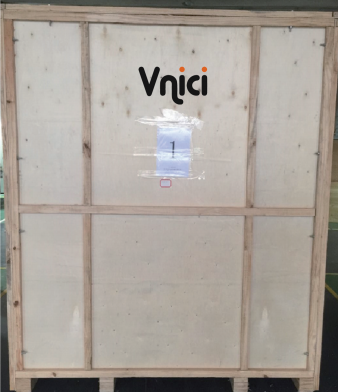

Dimensions of the Packaging Crate

This machine is transported as a complete unit and therefore requires no disassembly prior to shipment. The entire unit is enclosed within a wooden packaging crate or other suitable packaging container. Within the crate, the machine is secured using wooden battens and foam boards or other appropriate methods to prevent movement during transit. The machine inside the wooden crate is wrapped in stretch film to prevent scratches to the outer casing caused by friction during transport

.

SLA-360 Printer Wooden Crate Dimensions:

Inner dimensions: 950x900x1800mm

Outer dimensions: 1000x1000x1900mm

Why Choose VNICI As Your Industrial 3D Printer Supplier?

DM_20260611160807_001

Core Technology

Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.
DM_20260611160808_001

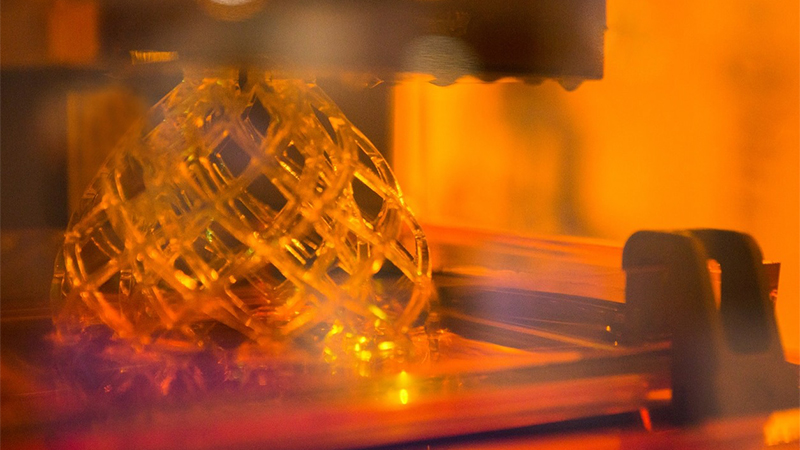

Industrial Solutions

We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.
DM_20260611160809_001

Good after-sales service

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.
DM_20260611160810_001

Fast Delivery

We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.

Industrial SLA 3D Printer 360 FAQ

  • Can I use my own logo or design on the products?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we offer OEM/ODM services; your logo and design can be created on the products.

  • Do you have a factory?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and provide OEM/ODM services to our customers.

  • What is your factory's production capacity?

    加 Created with Sketch.
    形状 Created with Sketch.

    Our production capacity is equivalent to 2,000 3d printers per month and 20 tons resins per month.

  • What is the pricing information for your products?

    加 Created with Sketch.
    形状 Created with Sketch.

    Hello! How can I assist you today? What products are you interested in? Please let me know your needs, and we can discuss further.

  • What brand of laser do you use?

    加 Created with Sketch.
    形状 Created with Sketch.

    We use AOC laser. What brand of laser do you prefer?

  • What brand of scanner do you use?

    加 Created with Sketch.
    形状 Created with Sketch.

    We use Hans scanner or Scanlab Scanner. Which one do you prefer?
