SLA 3D Printer 1600

Dual Laser & Dual Galvanometer System


SLA 1600
SLA 1600
SLA 1600

VNICI SLA-1600

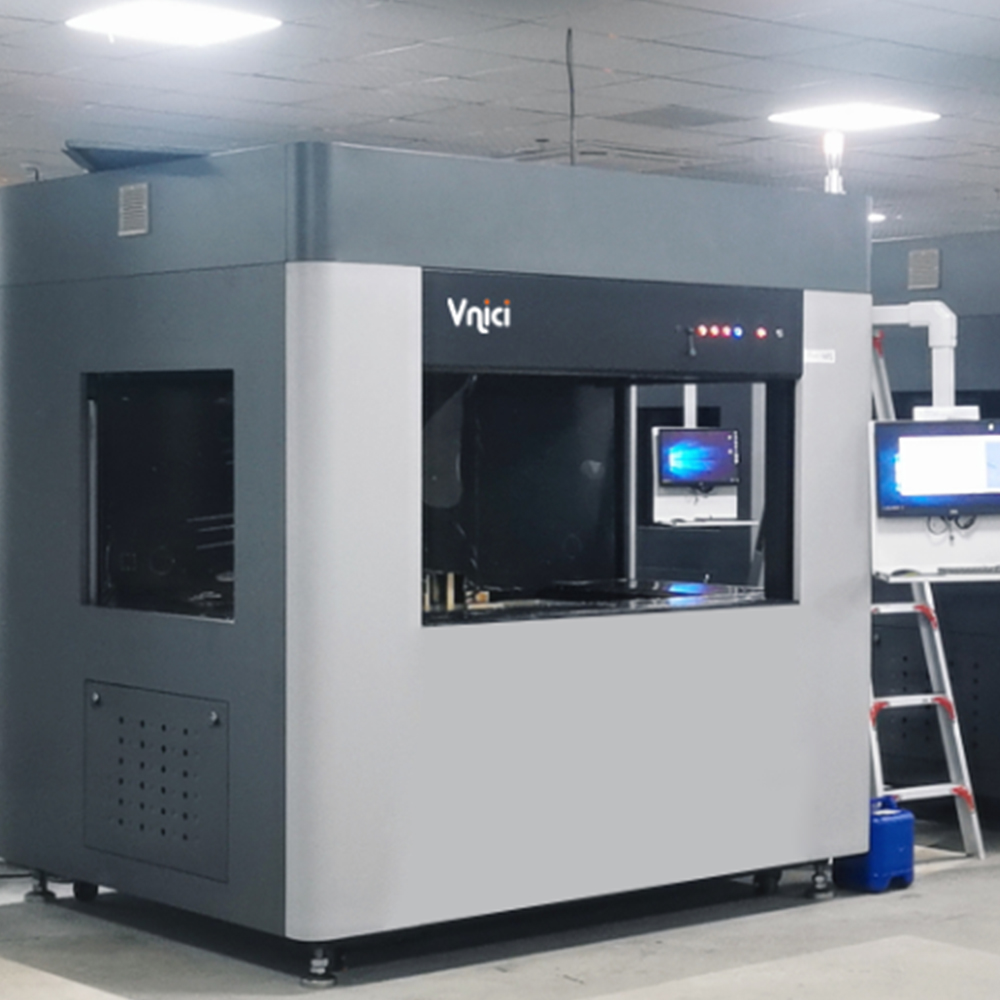

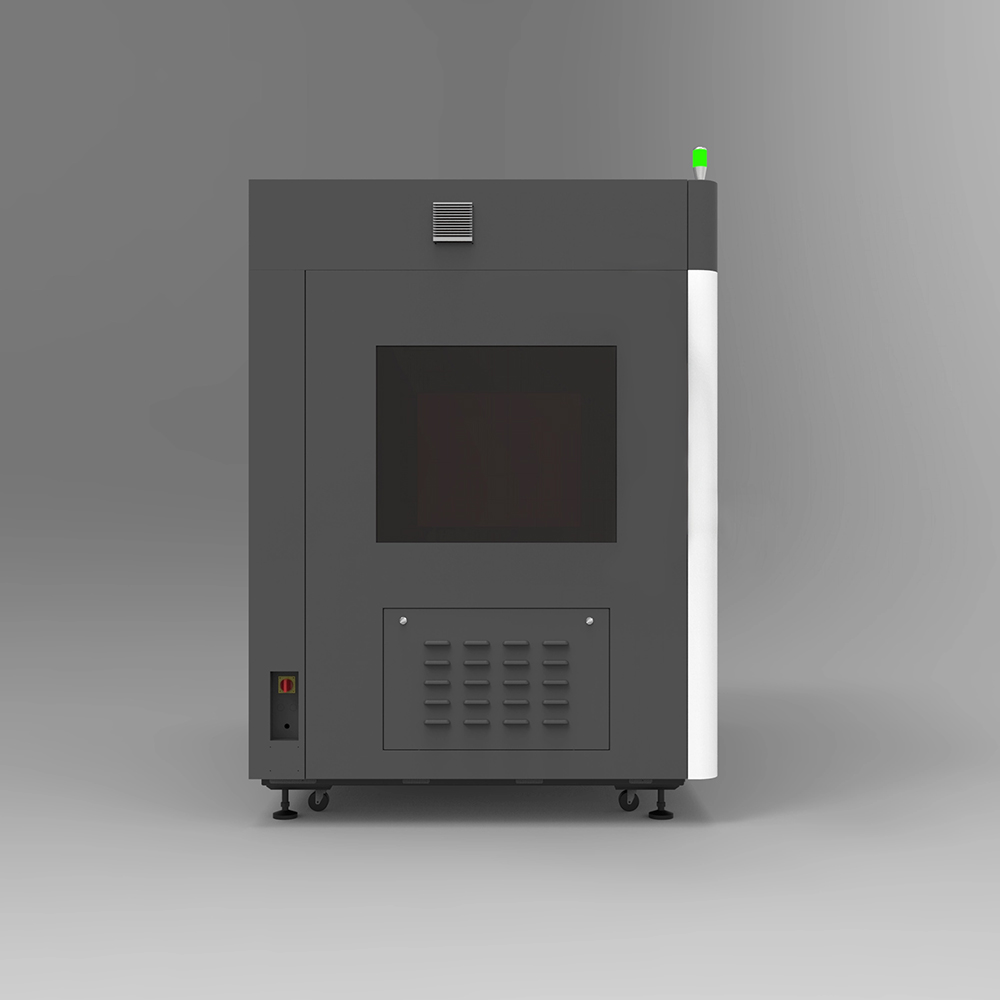

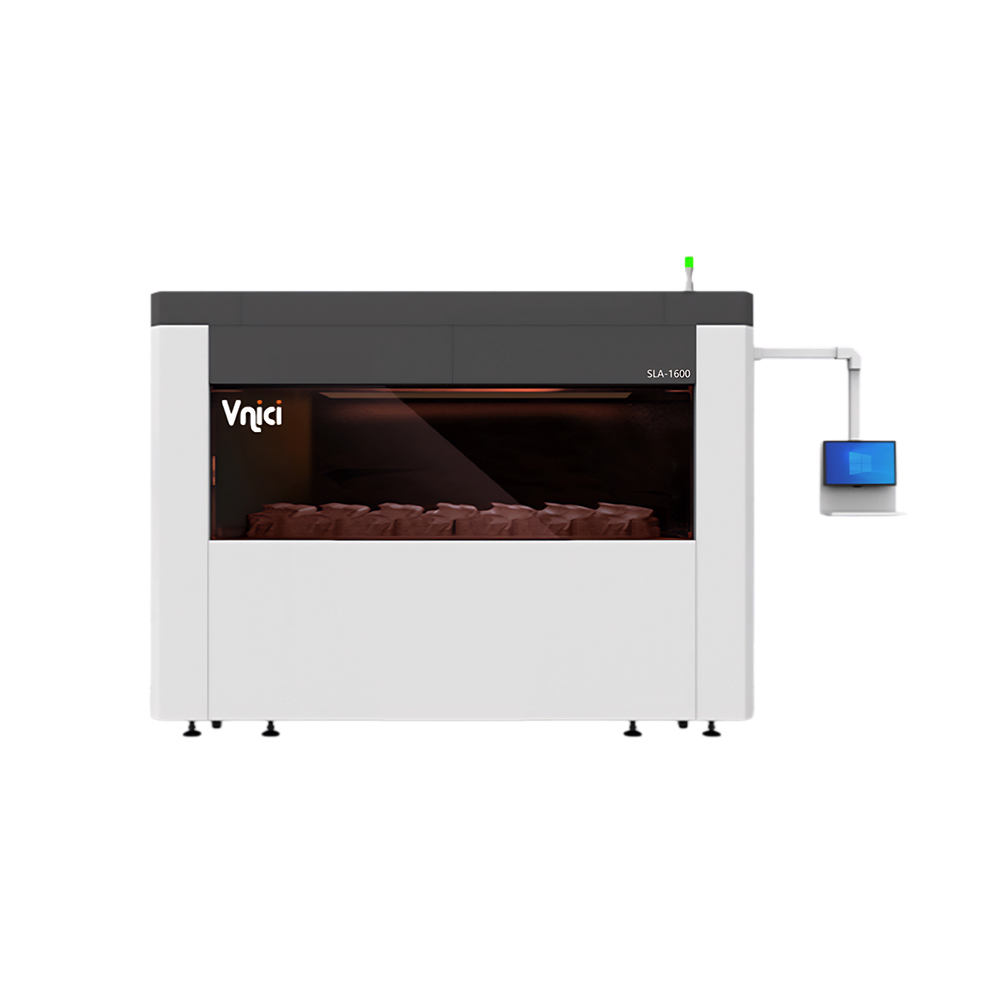

Industrial SLA 3D Printer 1600

Industrial-grade SLA (Stereolithography) 3D Printer

The SLA Industrial 3D Printer 1600 is a large-format, high-precision stereolithography (SLA) system engineered for industrial applications, specifically designed for manufacturing large, complex components and high-quality prototypes. Featuring a dual-laser + dual-scanner system paired with a 355nm diode-pumped solid-state laser, it delivers stable, consistent build accuracy while ensuring high-speed printing. Layer thickness can be flexibly selected between 0.05–0.15mm, meeting diverse needs from intricate cosmetic parts to efficiency-focused components. Its oversized build volume of 1600×800×600mm, combined with intelligent vacuum-assisted material handling and an optional hot-air resin heating system, significantly enhances build success rates and material stability. Supporting STL file formats and mainstream 3D design software, the SLA 1600 serves automotive, mold-making, aerospace, and industrial design sectors. It delivers an industrial-grade SLA 3D printing solution that balances size, precision, and production efficiency.

Request A Quick Quote

Technical Specifications of SLA Industrial 3D Printer 1600

Laser TypeDiode-Pumped Solid-state LaserForming MaterialPhotosensitive Resin
Wavelength355nmBuild Dimensions1600(X)*800(Y)*600(Z)mm
PowerMinimum Power To Liquid Surface ≥300mwResin Heating MethodHot Air Heating (Optional)
Coating MethodIntelligent Vacuum AdsorptionControl SoftwareVibration Motion Control Software
Normal Layer Thickness0.1mmMachine Tool Software Interface3D Design Software, STL File Format
Rapid Layer Thickness0.15mmOperation SystemWin 10 Or Above
Precision Layer Thickness0.05mmNetworkEthernet , TCP/IP
Characteristic Layer Thickness0.05mm-0 .15mm SelectablePower Supply110 - 240VAC 50/60Hz Single Phase, 10A
Spot (Diameter@1/e2)0.06-0.8mm Variable SpotRated Power Consumption2.4KVA
Scanning SystemDual Lasers＆Dual GalvanometersAmbient Temperature20-26℃
Maximum Scanning Speed Of Parts15.0m/sRelative HumidityBelow 40%, No Frost Formation
Vertical Resolution0.005mmEquipment Dimensions280(W)*180(D)*220(H)cm(Excluding Display Stand)
Repeat Positioning Accuracy±0.01mmNet Weight3000kg
Initial Resin Tank Volume1200kg

Start A Project With Us

Why Choose VNICI As Your Industrial 3D Printer Supplier?

DM_20260611160807_001

Core Technology

Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.
DM_20260611160808_001

Industrial Solutions

We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.
DM_20260611160809_001

Good after-sales service

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.
DM_20260611160810_001

Fast Delivery

We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.

Contact Us Now

Industrial SLA 3D Printer 1600 FAQ

  • How do we ensure the laser spot is accurately positioned on the platform?

    加 Created with Sketch.
    形状 Created with Sketch.

    To ensure precision, we place a calibration plate on the platform to verify and adjust the position of the laser spot before starting the print process. This ensures consistent printing accuracy.

  • Does the SLA-1600 use an F-theta lens attached to the Scanlab scanner?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, the SLA-1600 uses an F-theta lens in combination with the Scanlab scanner , ensuring optimal focus and high-quality prints.

  • How do we calibrate the platform for the SLA-1600, and how can we ensure the laser spot is correctly positioned?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 is calibrated before shipment , but you will need to purchase a calibration board along with the machine. Our engineers will provide training to ensure accurate calibration and laser spot alignment.

  • What types of resin are available for sale for private and business customers?

    加 Created with Sketch.
    形状 Created with Sketch.

    We offer a variety of resins for both private and business customers . Our sales team can provide a professional recommendation based on your specific needs.

  • What warranty does the SLA-1600 come with, and what does it include?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 comes with a 1-year warranty , including 24-hour online technical support . We offer free troubleshooting and support during the warranty period.

  • Does the SLA-1600 accept payments in installments?

    加 Created with Sketch.
    形状 Created with Sketch.

    Unfortunately, we do not offer installment payment plans . Payment for the SLA-1600 must be made in full.

  • Can I receive videos and an explanation of how the SLA-1600 works?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we can provide detailed videos and a thorough explanation of how the SLA-1600 operates. Please contact us for more information.

  • What slicing software is used with the SLA-1600?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 supports slicing software like Voxeldance Additive (China) and Materialise Magics (Belgium), which are both popular for creating optimal print paths for SLA 3D printing.

  • What accessories are included with the SLA-1600 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 comes with a full set of accessories . For more details and images of the included accessories, please contact our sales team.

  • What is the operating system for the SLA-1600?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 uses our own operating software , designed to maximize printing accuracy and ease of use, specifically for industrial applications.

  • Is there an English version of the software for the SLA-1600?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, the software for the SLA-1600 is available in English , making it accessible to a global customer base.

  • What is the controller software for the SLA-1600?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 is powered by custom software , developed specifically to control and optimize the machine’s performance. This software ensures smooth and efficient operation tailored to the needs of industrial users.

  • What type of motor is used in the SLA-1600 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 features a servo motor , which provides highly accurate and reliable motion control during the 3D printing process.

  • Is the resin tank of the SLA-1600 3D printer replaceable?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, the resin tank of the SLA-1600 is replaceable , allowing for easy maintenance and ensuring consistent print quality over time.

  • What is the laser power of the SLA-1600 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 operates with a 5-watt laser , which is ideal for precise and detailed prints in industrial-grade 3D printing applications.

  • What kind of laser does the SLA-1600 3D printer use?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 is equipped with a ND:YVO4 laser , a reliable and popular laser type for industrial SLA 3D printers. The common laser brand used is AOC , known for its high performance and stability.

  • What type of scanner is used in the industrial SLA-1600 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 3D printer utilizes a high-speed galvanometer scanner , commonly from well-known brands like Scanlab (Germany) and Hans (China) , ensuring high precision and speed during the printing process.

  • What is the resin tank capacity of the SLA-1600 3D printer?

    加 Created with Sketch.
    形状 Created with Sketch.

    The SLA-1600 has a resin tank capacity of 1500 kg.
