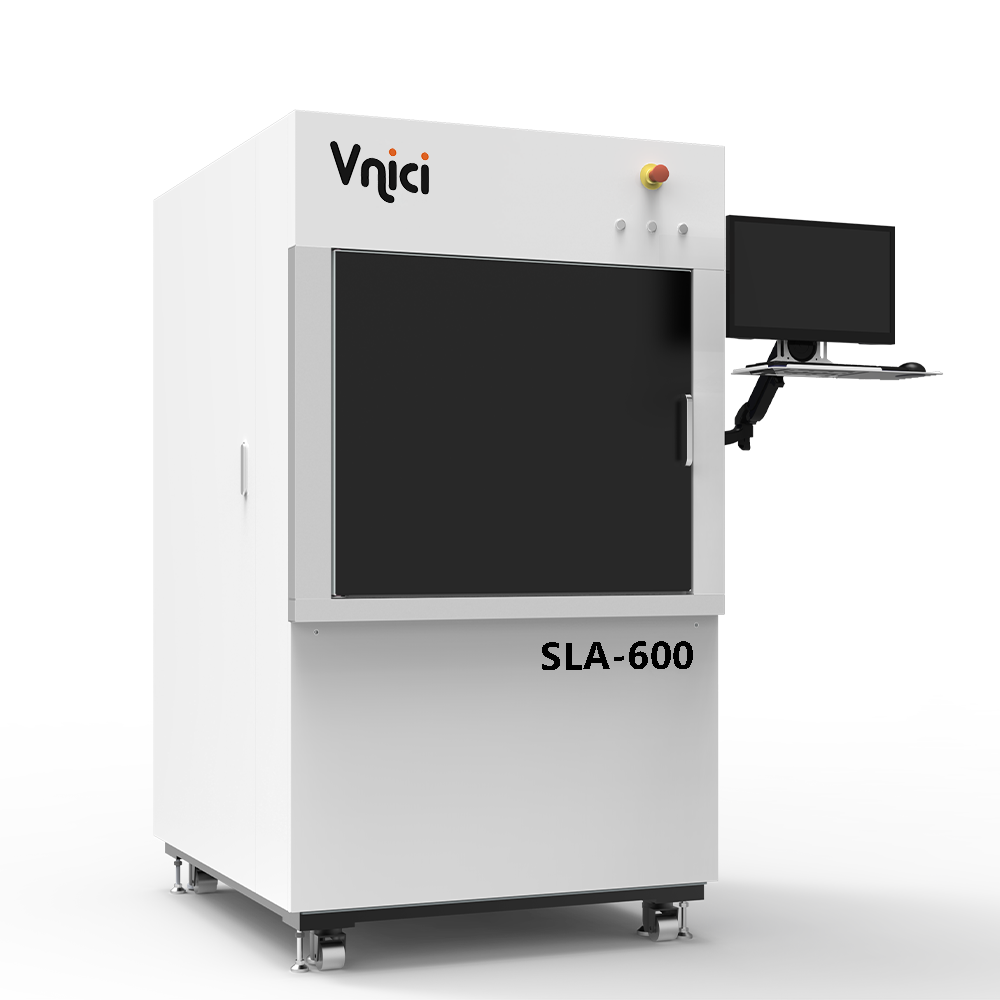

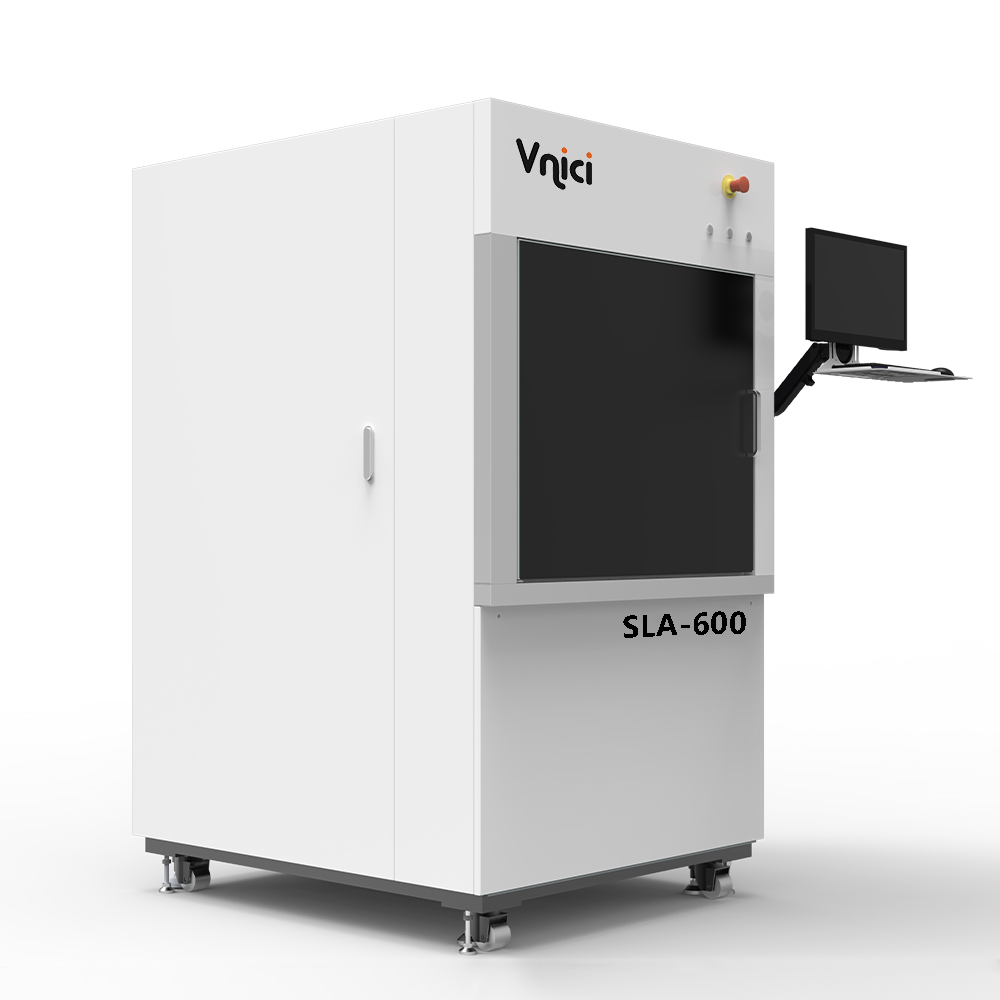

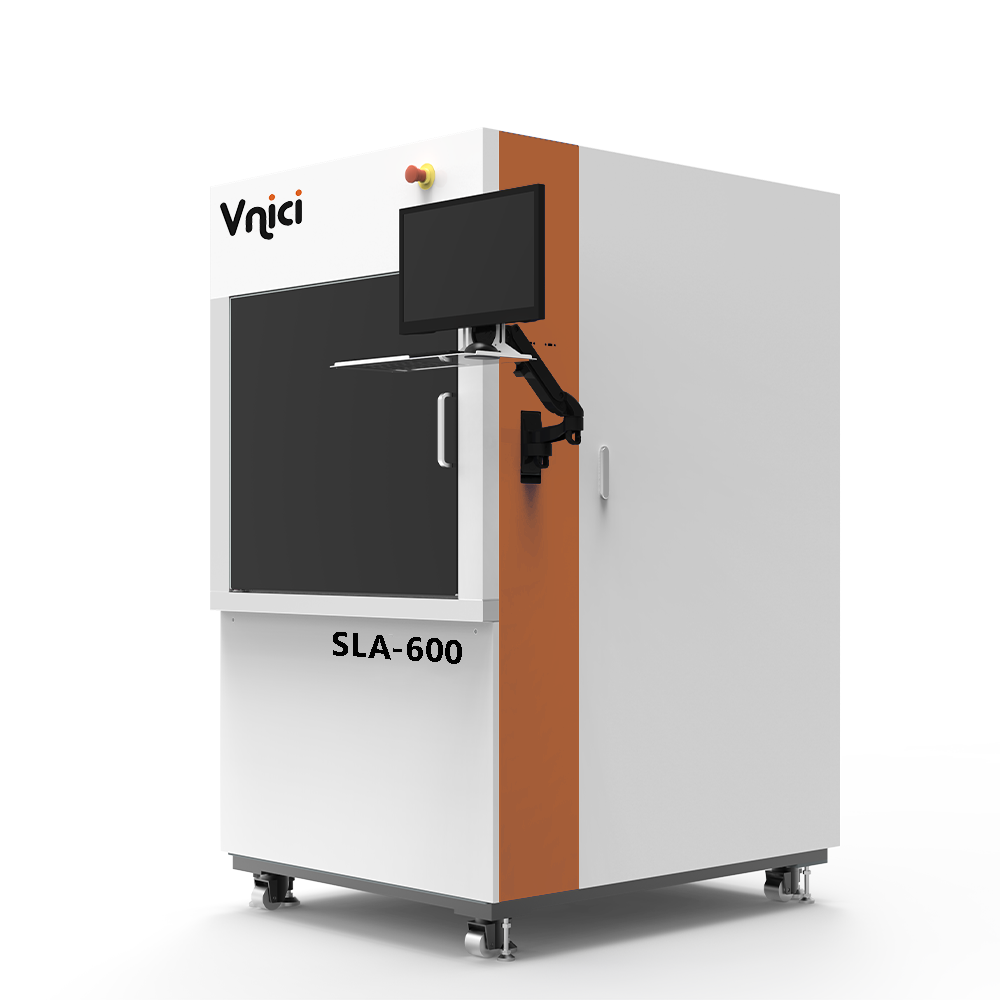

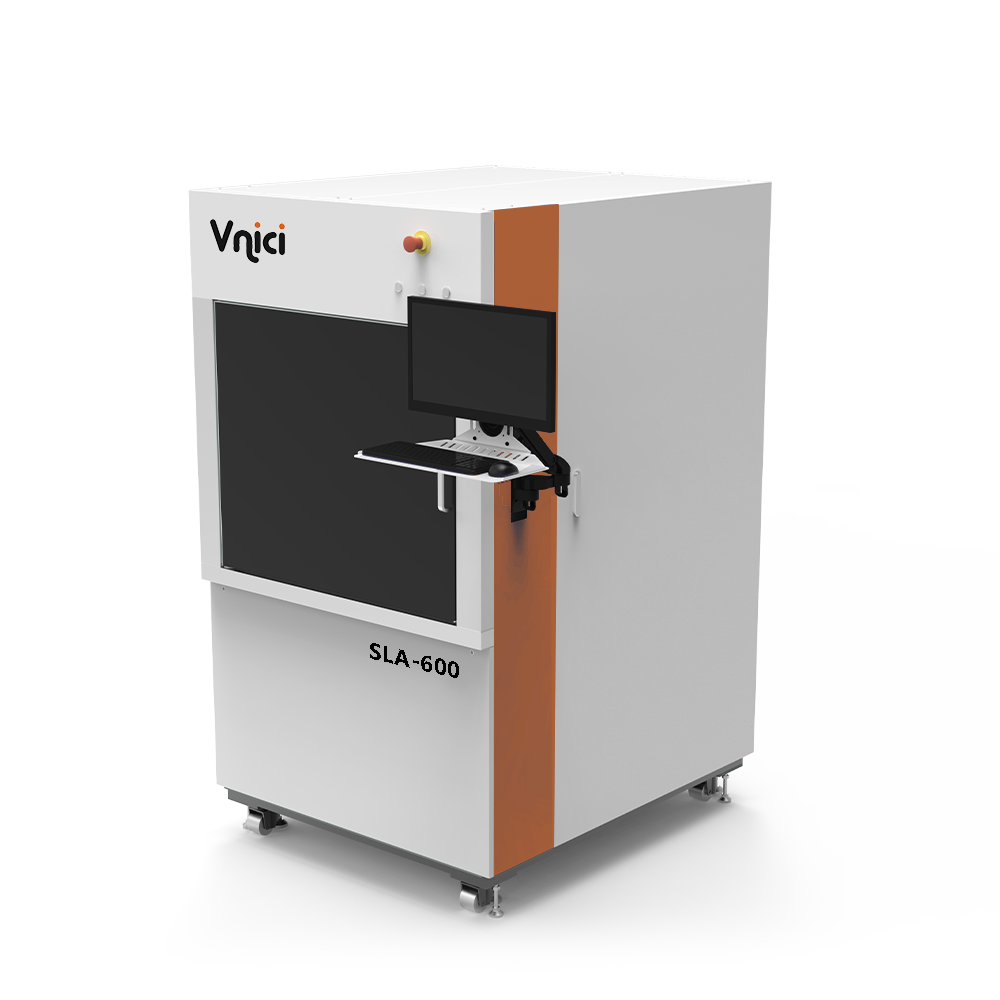

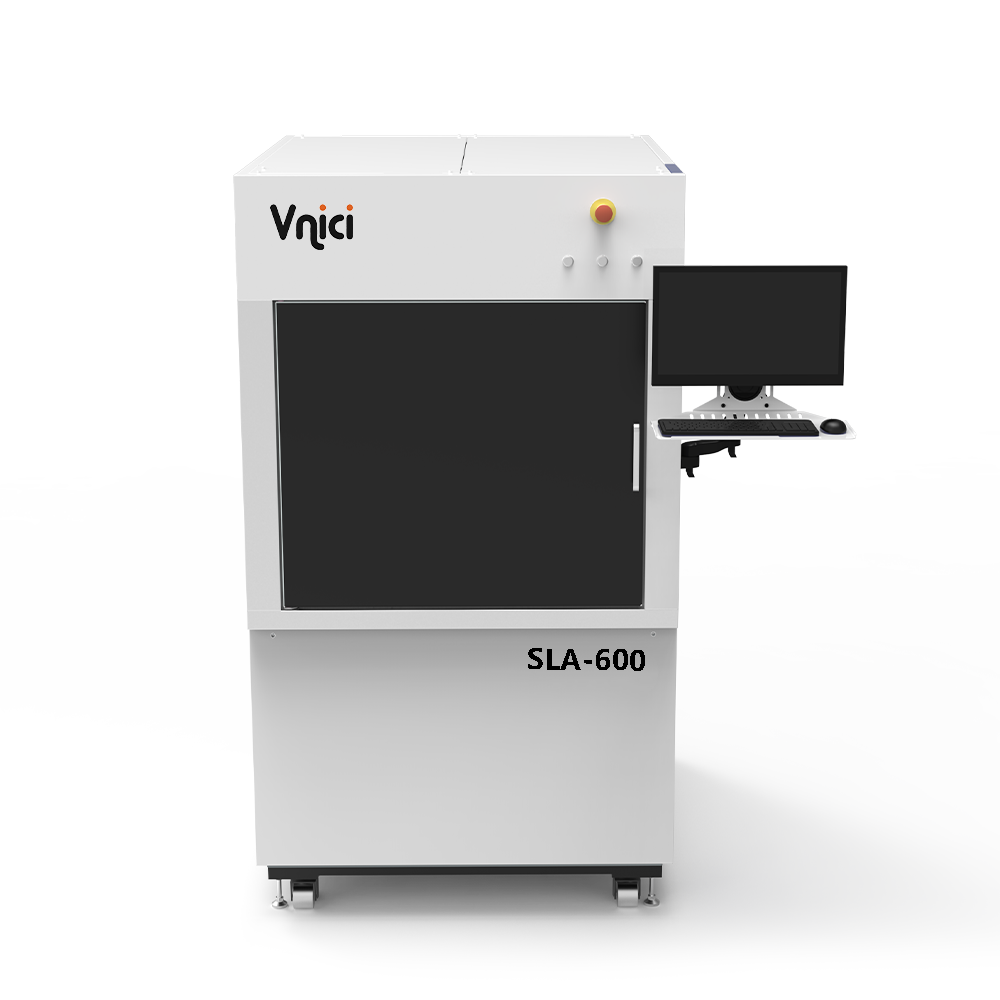

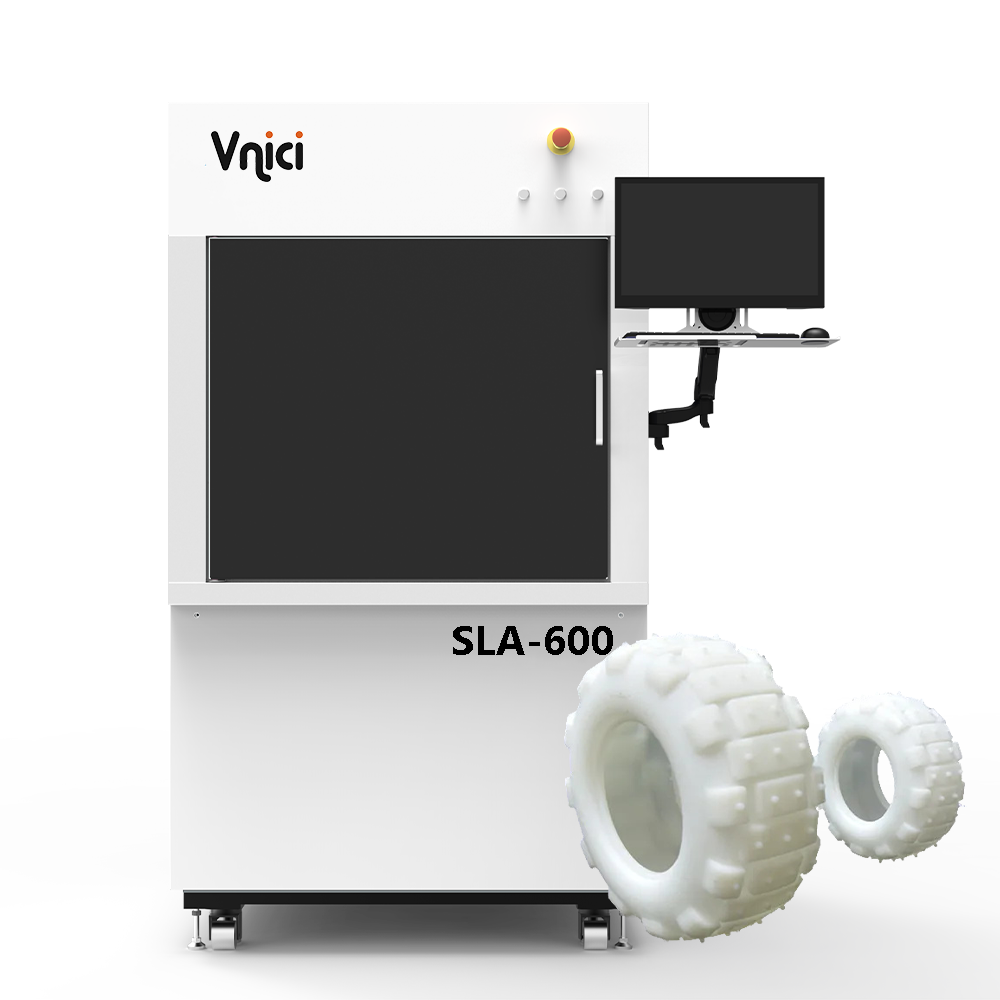

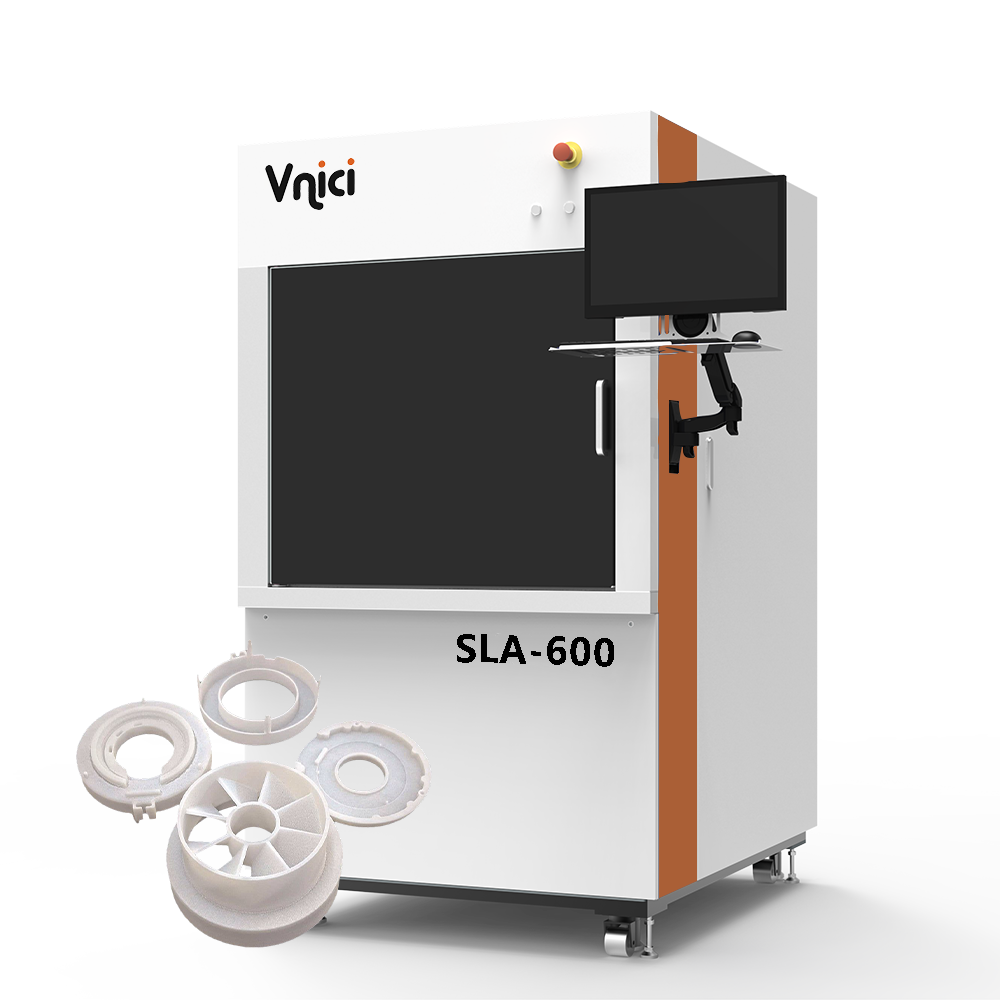

Technical Specifications of Industrial SLA 3D Printer 600
| Specifications | Model | Vnici-SLA-600 |
| Appearance Dimensions | 1140*1300*1900mm | |
| Net Weight | 860KG | |
| Machine Power | 550W | |

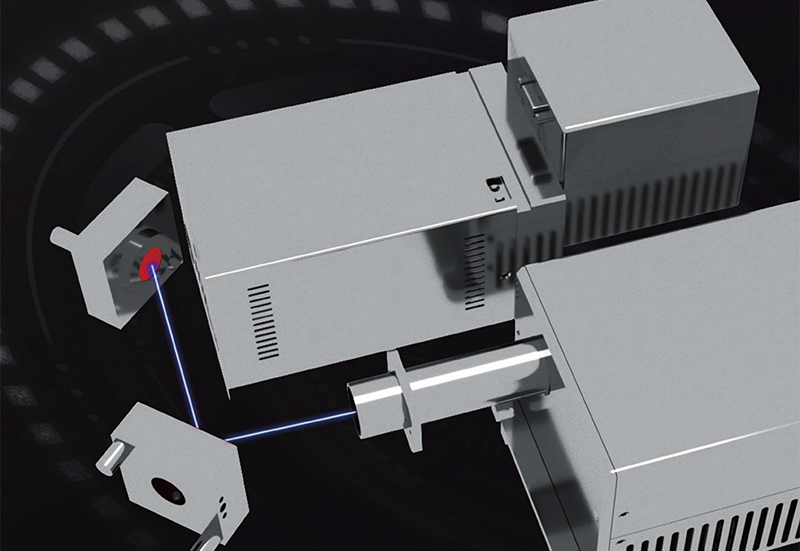

| Laser System | Laser Quantity | 1 |
| Laser Type | Diode-Pumped Solid-State Laser Nd:YVO₄ | |
| Laser Wavelength | 355nm | |
| Laser Power | 3W | |

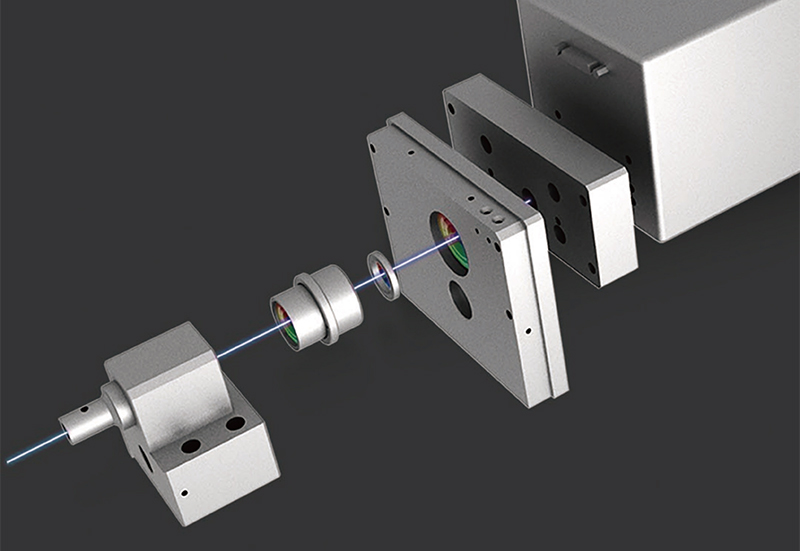

| 0ptical Scanning System | Spot Diameter | 0.06-1.2mm |
| Scanning System | High -speed Galvanometer Scanning System | |
| Part Scanning Speed | Recommended 6m/s | |
| Jumping Speed Of Parts | Recommended 10m/s | |
| Reference Production Speed | 300-500g/h | |
| Coating System | Coating Method | Precision Positioning-Vacuum Adsorption |
| Normal Layer Thickness | 0.1mm | |
| Rapid Layer Thickness | 0.2mm | |
| Precision Layer Thickness | 0.05mm | |
| Characteristic Layer Thickness | 0.05mm-0.15mm(Selectable) | |
| Resin Tank | Resin Tank Capacity | Approximately240kg |
| Maximum Forming Size | 600*600*400mm | |
| Lifting System | Basic Platform | Grinding-Grade Marble Reference Platform |
| Repeat Positioning Accuracy | ±0.01mm | |
| Maximum Part Weight | 25kg |
Start A Project With Us
Packaging & Delivery of Industrial SLA 3D Printer 600
Each SLA 3D printer is carefully packed with protective foam and exported wooden box to ensure safety during international shipment.
Standard lead time: 15–25 working days.
1.Packaging
Logistics Packaging Components
2.Transportation
3.Packaging Crate Management
4.Acceptance and Storage of Packaging Crates
Upon receipt of the packaging crate, the customer must immediately inspect its condition. Should any damage be detected, the relevant issues must be promptly reported to our company personnel and the transport team before the crate is transported to the installation site or opened.
Components of the 3D printer must be stored in their packaging boxes.
*Should temporary storage of the packaging boxes be required, this must be undertaken in a dry indoor environment with adequate protective measures. Please note: Storage temperature must be maintained between 0°C and 50°C, with relative humidity below 75%.
Dimensions of the Packaging Crate
This machine is transported as a complete unit and therefore requires no disassembly prior to shipment. The entire unit is enclosed within a wooden packaging crate or other suitable packaging container. Within the crate, the machine is secured using wooden battens and foam boards or other appropriate methods to prevent movement during transit. The machine inside the wooden crate is wrapped in stretch film to prevent scratches to the outer casing caused by friction during transport
.
Inner dimensions: 1550 × 1700 × 2190 mm
Outer dimensions: 1600 × 1900 × 2300 mm
Combined shipment: Long sides, short sides, lid and base tray bolted together to form assembly (see assembly diagram); short sides to base tray secured using 8 M10x140 hex-head galvanised bolts.
Industrial SLA 3D Printer 600 FAQ
-
How do we ensure the laser spot is accurately positioned on the platform?
To ensure precision, we place a calibration plate on the platform to verify and adjust the position of the laser spot before starting the print process. This ensures consistent printing accuracy.
-
Does the SLA-600 use an F-theta lens attached to the Scanlab scanner?
Yes, the SLA- 600 uses an F-theta lens in combination with the Scanlab scanner , ensuring optimal focus and high-quality prints.
-
How do we calibrate the platform for the SLA-600, and how can we ensure the laser spot is correctly positioned?
The SLA-600 is calibrated before shipment , but you will need to purchase a calibration board along with the machine. Our engineers will provide training to ensure accurate calibration and laser spot alignment.
-
What types of resin are available for sale for private and business customers?
We offer a variety of resins for both private and business customers . Our sales team can provide a professional recommendation based on your specific needs.
-
What warranty does the SLA-600 come with, and what does it include?
The SLA-600 comes with a 1-year warranty , including 24-hour online technical support . We offer free troubleshooting and support during the warranty period.
-
Does the SLA-600 accept payments in installments?
Unfortunately, we do not offer installment payment plans . Payment for the SLA-600 must be made in full.
-
Can I receive videos and an explanation of how the SLA-600 works?
Yes, we can provide detailed videos and a thorough explanation of how the SLA-600 operates. Please contact us for more information.
-
What slicing software is used with the SLA-600?
The SLA-600 supports slicing software like Voxeldance Additive (China) and Materialise Magics (Belgium), which are both popular for creating optimal print paths for SLA 3D printing.
-
What accessories are included with the SLA-600 3D printer?
The SLA-600 comes with a full set of accessories . For more details and images of the included accessories, please contact our sales team.
-
What is the resin tank capacity of the SLA-600?
The resin tank capacity for the SLA-600 is 250kg , offering a large enough volume for extended print runs, making it ideal for high-output industrial 3D printing.
-
What is the operating system for the SLA-600?
The SLA-600 uses our own operating software , designed to maximize printing accuracy and ease of use, specifically for industrial applications.
-
Is there an English version of the software for the SLA-600?
Yes, the software for the SLA- 600 is available in English , making it accessible to a global customer base.
-
What is the controller software for the SLA-600?
The SLA-600 is powered by custom software , developed specifically to control and optimize the machine’s performance. This software ensures smooth and efficient operation tailored to the needs of industrial users.
-
What type of motor is used in the SLA-600 3D printer?
The SLA-600 features a servo motor , which provides highly accurate and reliable motion control during the 3D printing process.
-
Is the resin tank of the SLA-600 3D printer replaceable?
Yes, the resin tank of the SLA-600 is replaceable , allowing for easy maintenance and ensuring consistent print quality over time.
-
What is the laser power of the SLA-600 3D printer?
The SLA-600 operates with a 5-watt laser , which is ideal for precise and detailed prints in industrial-grade 3D printing applications.
-
What kind of laser does the SLA-600 3D printer use?
The SLA-600 is equipped with a ND:YVO4 laser , a reliable and popular laser type for industrial SLA 3D printers. The common laser brand used is AOC , known for its high performance and stability.
-
What type of scanner is used in the industrial SLA-600 3D printer?
The SLA- 600 3D printer utilizes a high-speed galvanometer scanner , commonly from well-known brands like Scanlab (Germany) and Hans (China) , ensuring high precision and speed during the printing process.
