Home Systems DLP Systems Ultrahigh Speed 3D Printer RayForm-400D

DLP 3D Printer RayForm-400D

Combining high-speed printing and intelligent processes

Delivering exceptional printing quality at ultra-fast speed

1
6

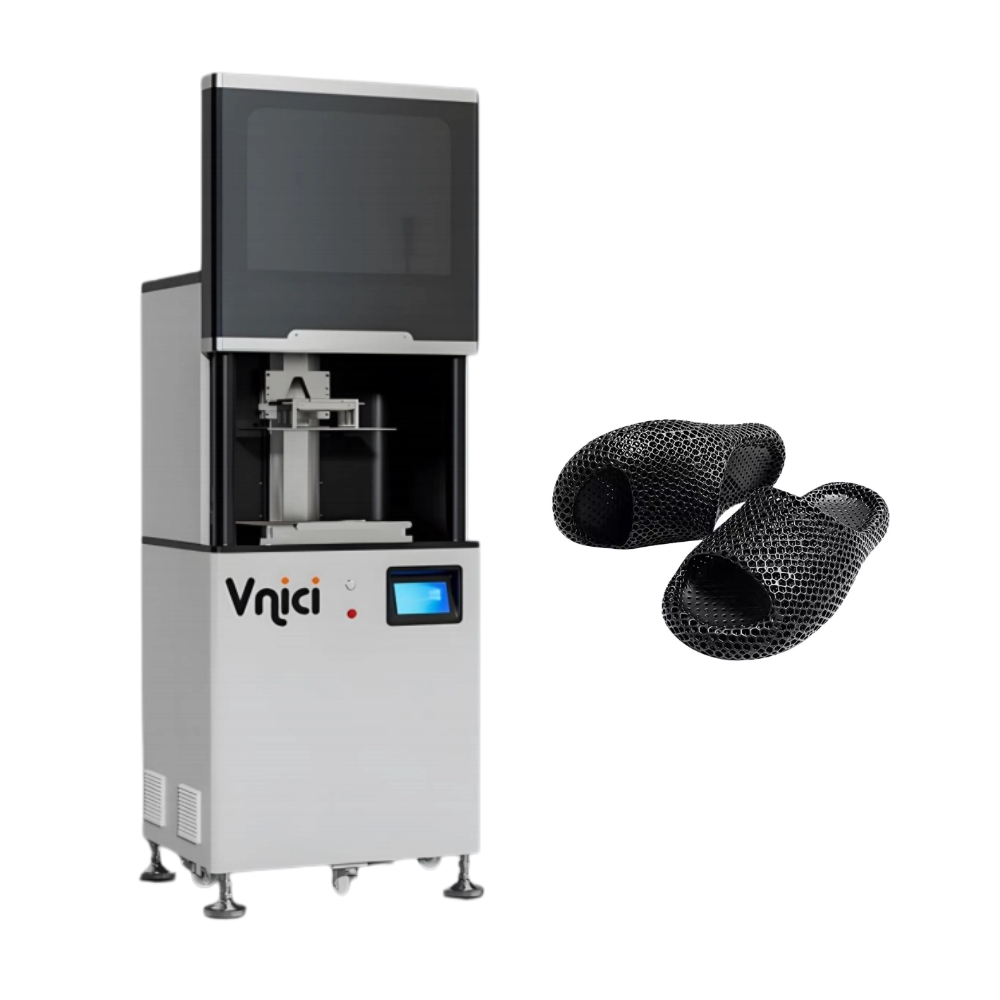

8

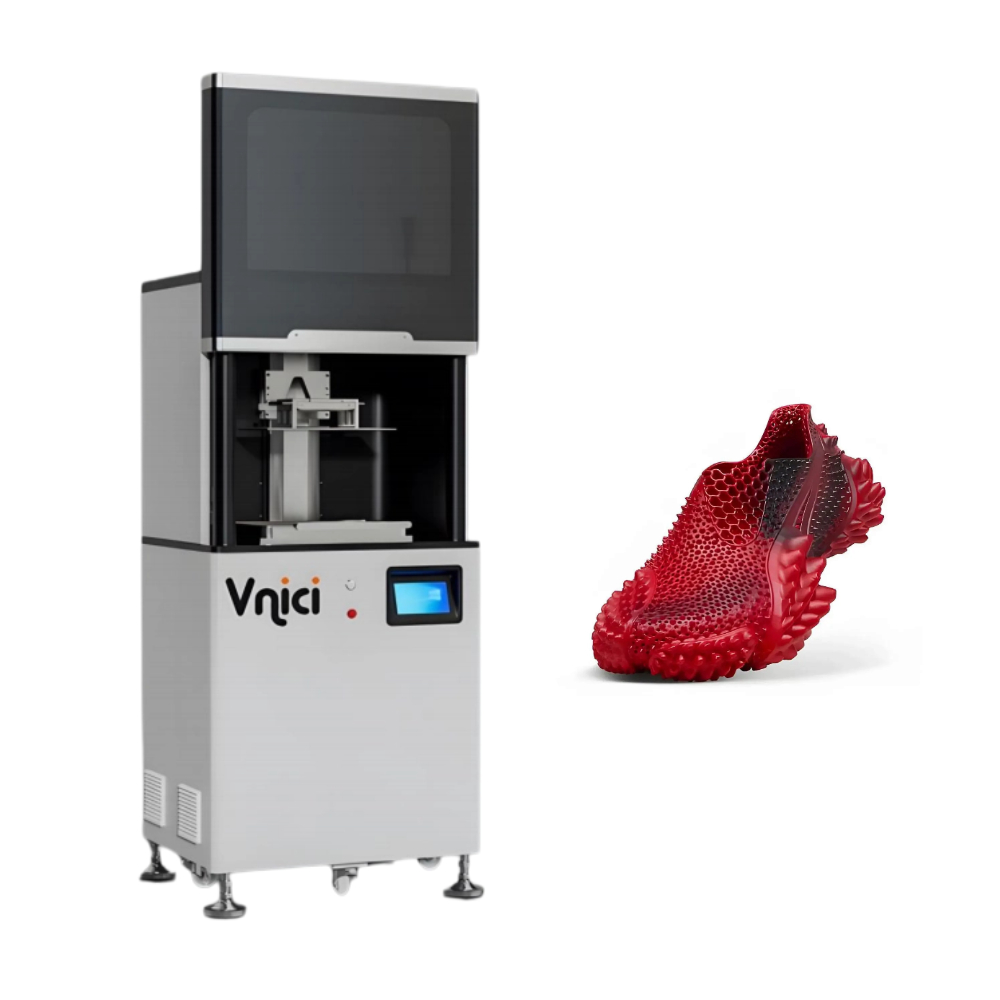

26

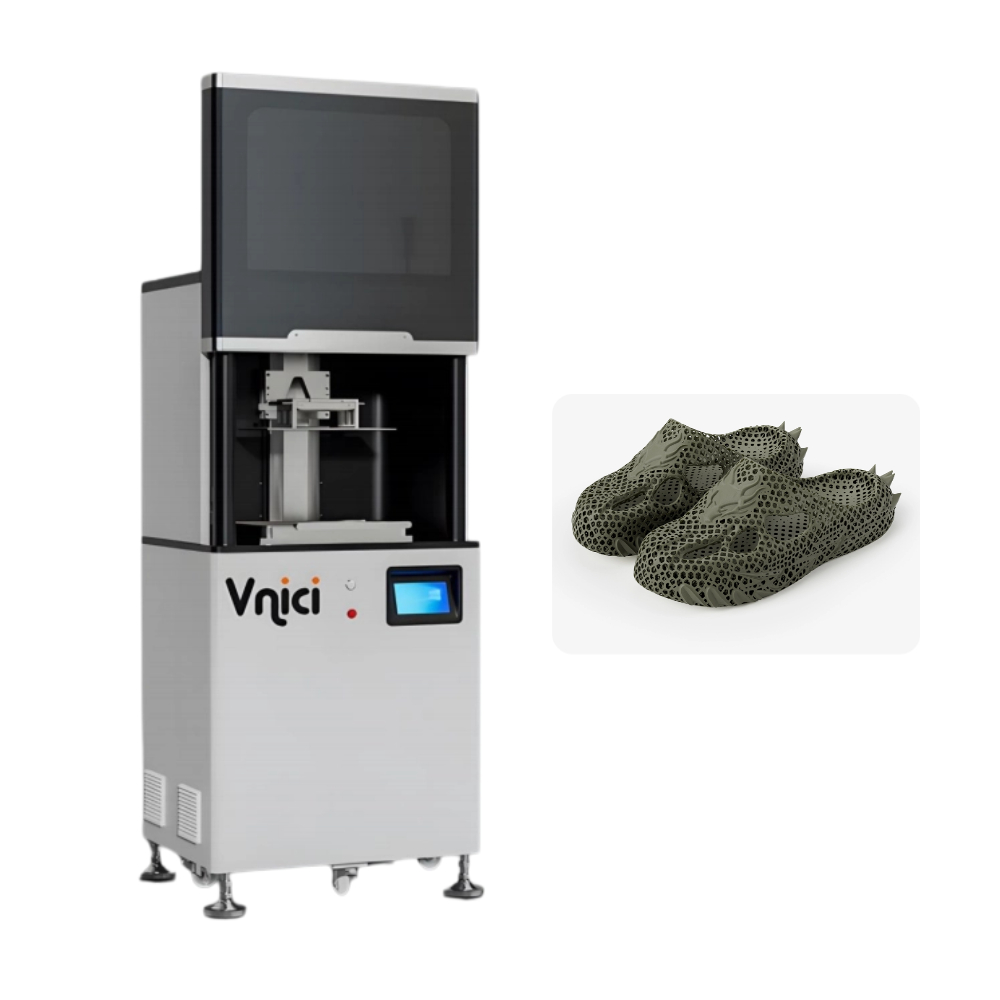

18

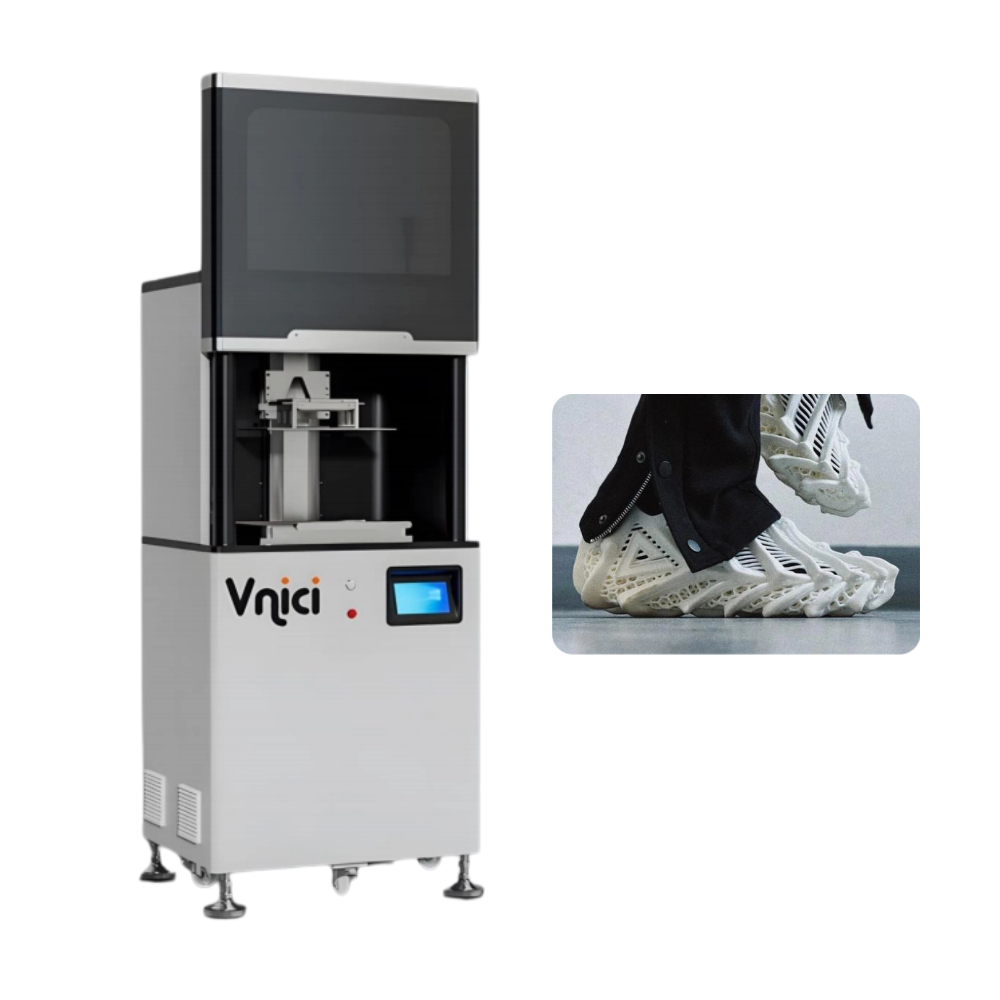

16

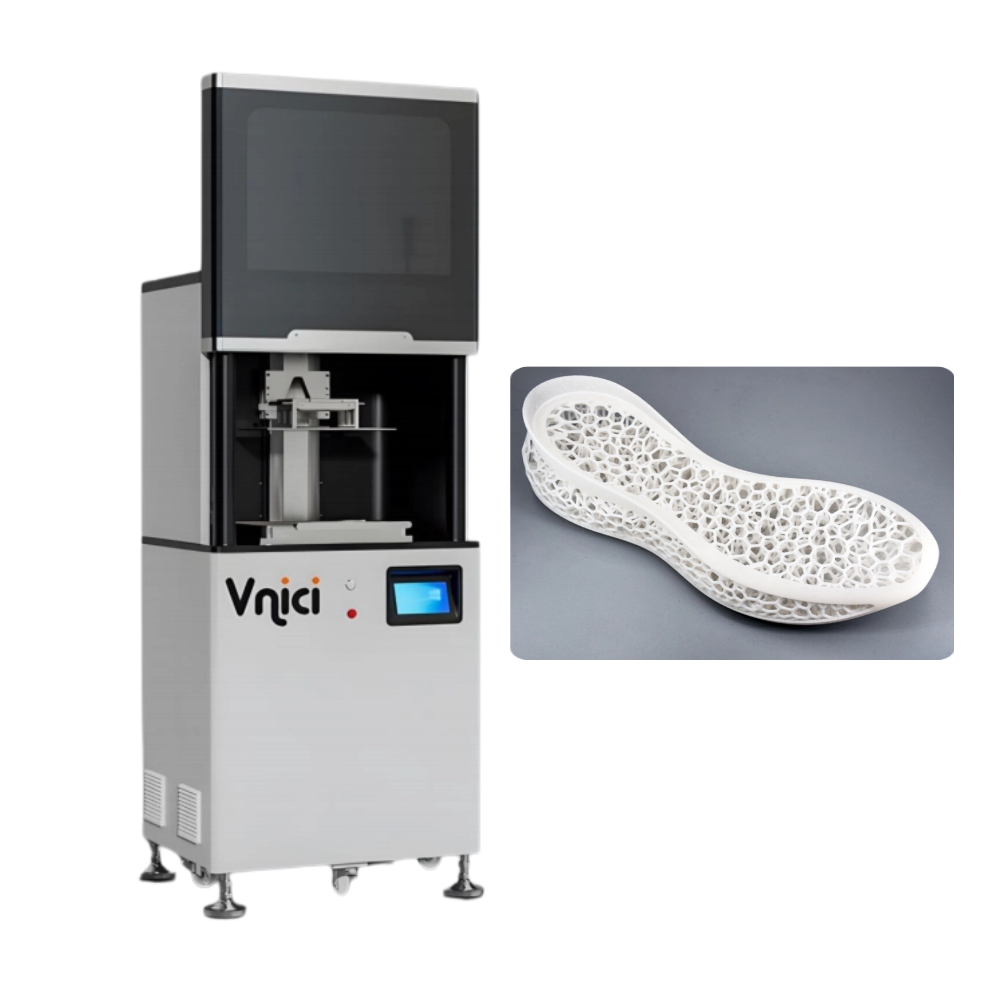

7(1)

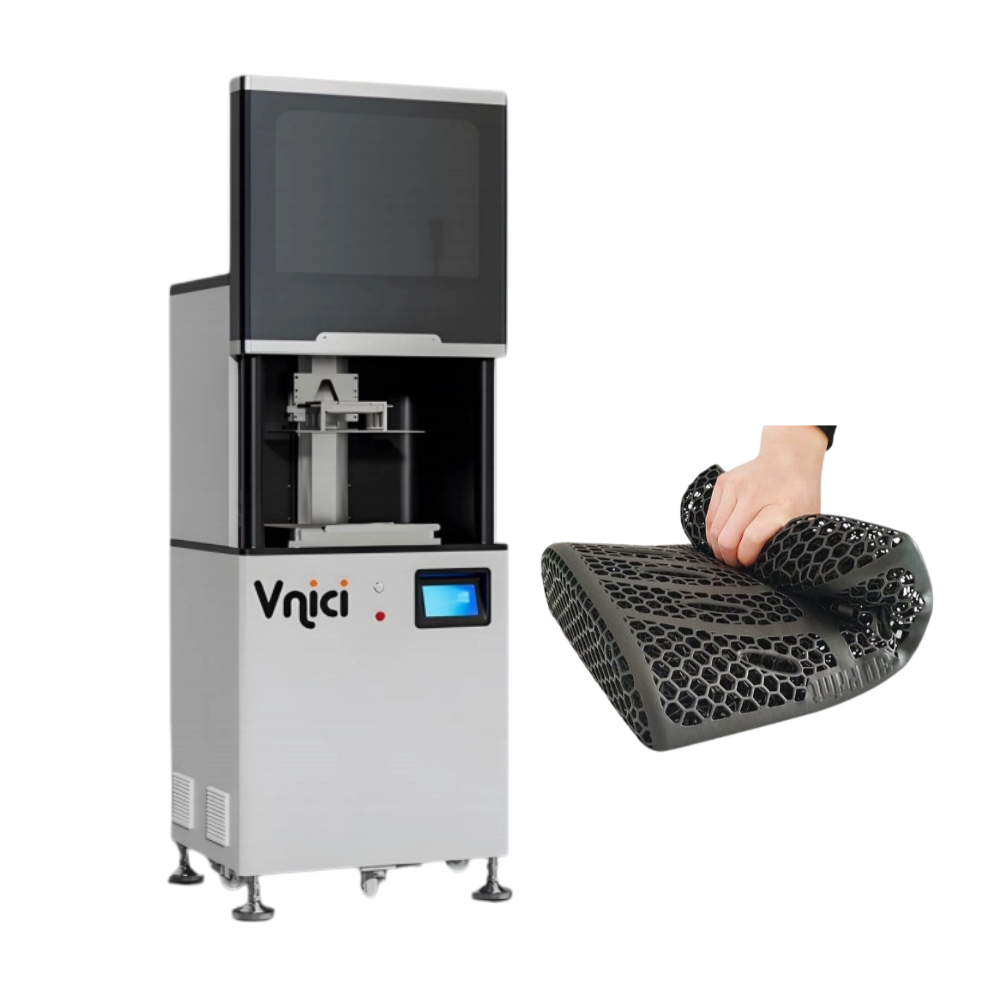

5

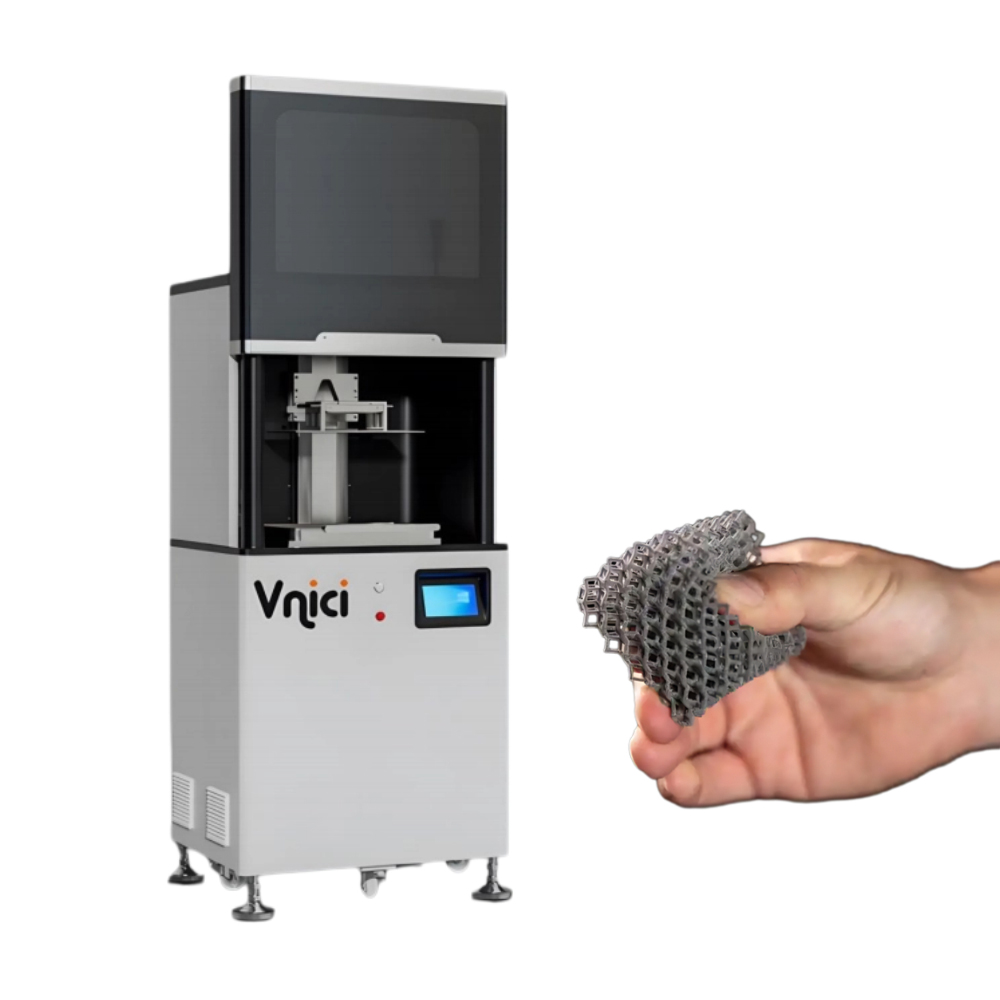

4
7

VNICI RAYFORM-400D

Ultrahigh Speed 3D Printer RayForm-400D

“RayForm-400D enables industrial 3D printingthrough high accuracy and a large build volume."


The RayForm-400D is a top-tier industrial DLP 3D printer designed for elastic footwear and high-volume production. With an impressive build volume of 384 × 216 × 400 mm and 100 μm XY resolution, it delivers exceptional speed and precision. Powered by a 4K UV LED light source (385/405 nm), it enables rapid curing of advanced elastomeric resins, achieving superior surface quality and mechanical performance. Ideal for mass-customized insoles, midsoles, and lattice-structured footwear, the RayForm-400D combines ultra-fast printing with industrial-grade reliability, making it the ultimate solution for modern shoe manufacturing.

Request A Quick Quote

Video of Ultrahigh Speed 3D Printer RayForm-400D

Start An Order With Us

Advantages of Ultrahigh Speed 3D Printer RayForm-400D

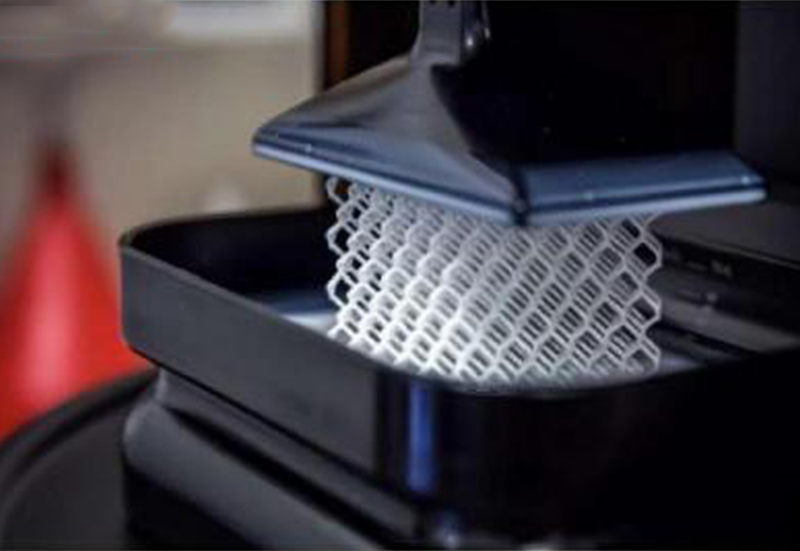

Ultra-High-Precision
precision

Ultra High Precision

The Vnici Ultra-Fast Series delivers ultra-high resolution for high- precision complex models, ideal for jewelry, industrial prototypes,shoes and medical models.
speedometer (2)

High-speed 3D Printing Technology

The Vnici Ultra-Fast Series utilizes high-speed 3D printing toaccelerate model separation, boost print speed, and preventdeformation for superior precision and quality.
bulb

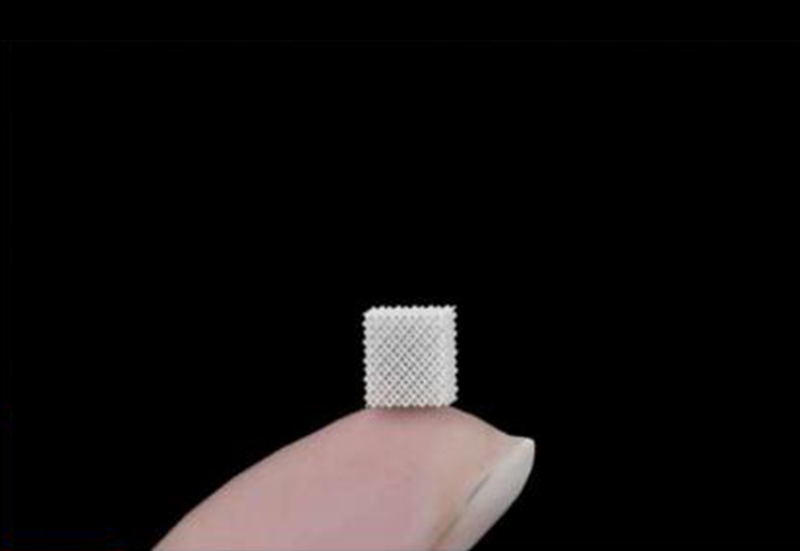

Powerful Light Source System

It adopts a powerful and stable 4K UV LED light sourcesystem and combines digital distortion compensationtechnology to eliminate optical distortion; the light intensity distribution algorithm makes its error less than 5%; the boundary gradient optimization algorithm eliminates the pixel pattems in the XY direction and the step patterns in the Z direction to the greatest extent.
All these advanced functions ensure fawless prints withunmatched precision.
Powerful-Light-Source-System

Contact Our Support Team

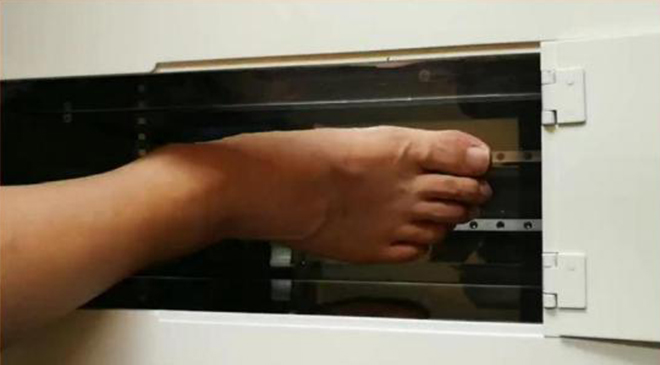

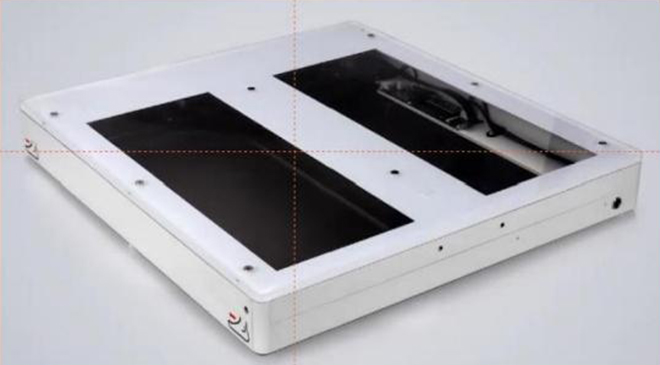

Self-Developed 3d Foot Scanner

Self-Developed-3d-Foot-Scanner1
Self-Developed-3d-Foot-Scanner2
Exquisite
Light
Fast
Portable

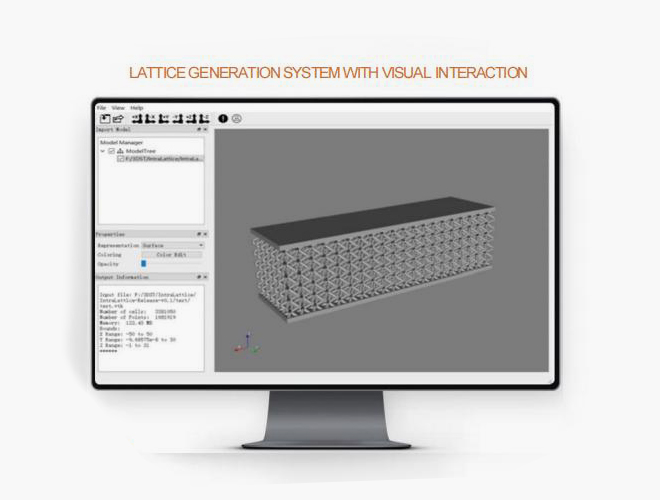

Self-Developed Lattice Design and Optimization Software

Developed based on C++ for generatingstructured (regular unit) and unstructured (Voronoi, triangulation structure) lattices.

Start an Order with Us

Self-Developed-Lattice-Designand-Optimization-Software

Software Usage Status

Based on existing technologies, the lNTRALATTiCE software has been applied in various fields, such as lightweight aerospace structural parts, implantable prostheses with functional gradients, buffer energy-absoring devices, and high-eficiency mulf-functional heat transfer devices. To further improve structural perfomance, this software also provides a complete mull- scale structural design optimization and simulation process.
This optimization design process can help designers make full use of the design space provided by additive manufacturing to realize multi-space and multi-scale lattice structure multi-functional optimization design.

Advantages Of The Software Platform

Flexibiltly: Can generate various lattice structures, and users can customize the required lattice structures according to their needsDifferent lattice structures can be seamessly connected through technical means.


Speed and stablity: Adopt the latest latice structure construction algorithm, which efiectively shortens the time forgenerating latice structures and their memory usage. lt also provides an interface to directly generate slice files of lattice structures wthout convering them into traditional triangular patch fies for sicing, which effectively shortens the latice structure design time and reduces the time used for repalring tranguar patch files.


Powerful optimikzation function: The existing technology of our team can not only optimize its mechanical properties but also optimize its comprehensive properties such as conduction heat transfer, forced convection heat transfer, and energy absorption,effectively supporting the multifunctional design of lattice strctures.


Latice database: the latice structure functions of all commercial sofware do not include a laice database, which brings grealdifficulties to users when selecing lattice topology structures and types.

Technical Specifications of Ultrahigh Speed 3D Printer RayForm-400D

ModelRayForm-400RayForm-400D
Machine size700*600*1820800*650*1820
Build Size288*162*400384*216*400
Resolution75100
ModelDLPDLP
Light source4K UV LED4K UV LED
Wavelength385/405385/405
Input Formatobj/stl/stpobj/stl/stp
Net weight200KG260KG

Start A Project With Us

Applications of Ultrahigh Speed 3D Printer RayForm-400D

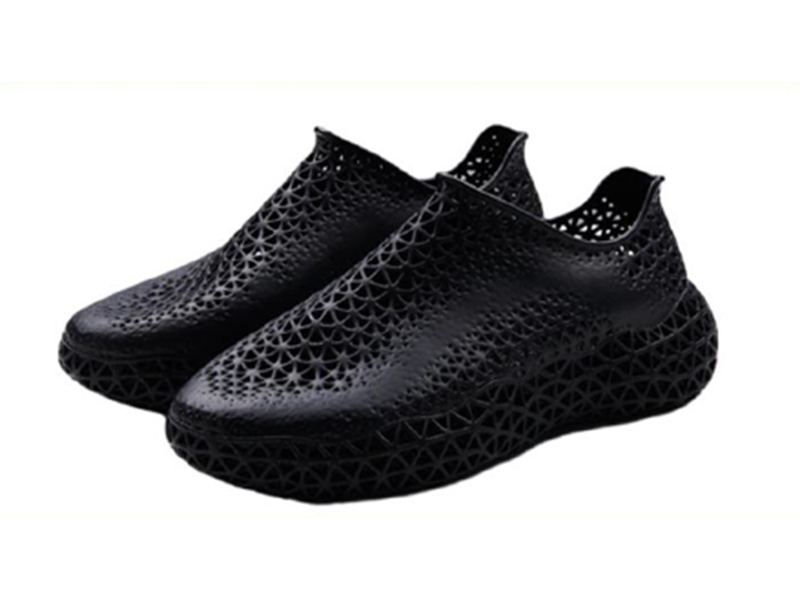

Sports recovery slippers & Dolphin slippers

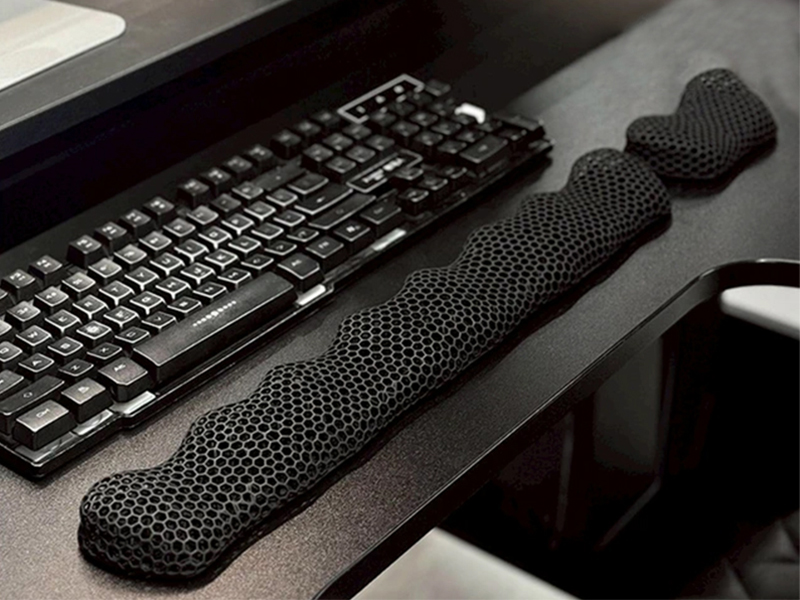

3D printed mouse& keyboard set

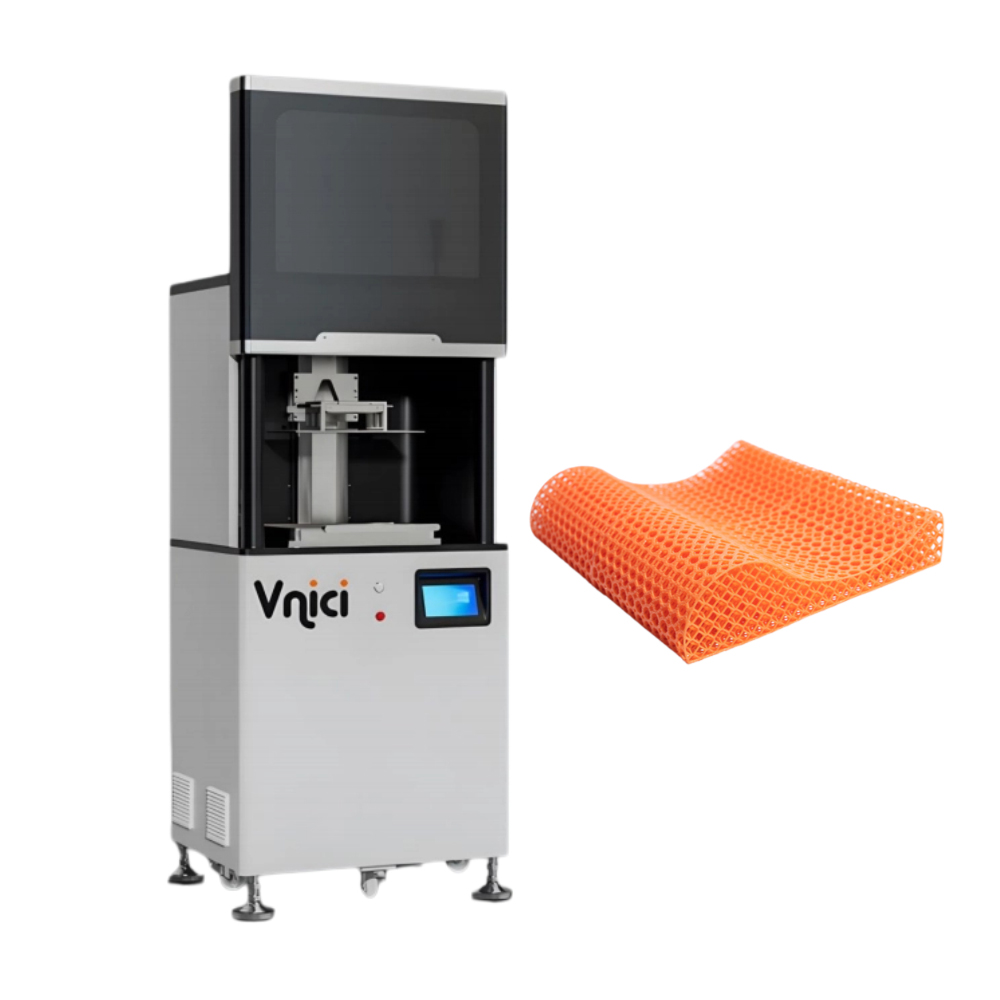

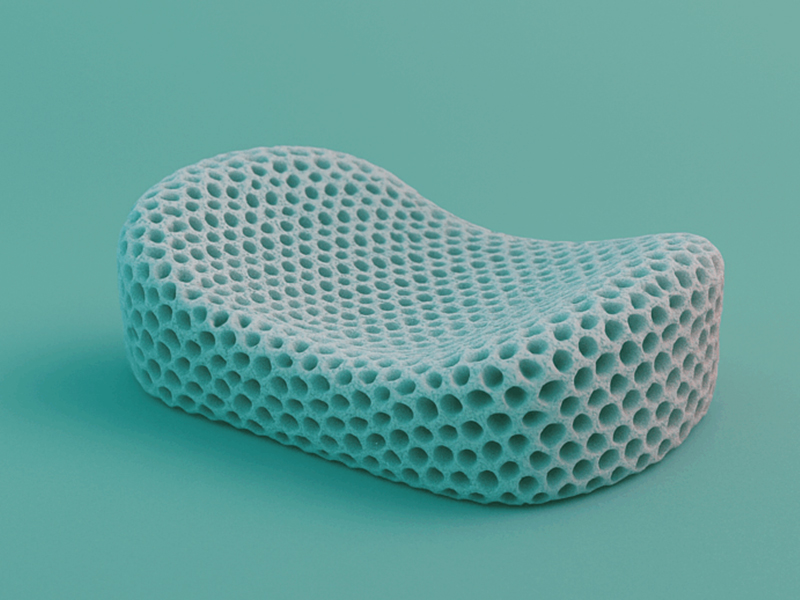

3D Printed Pillow

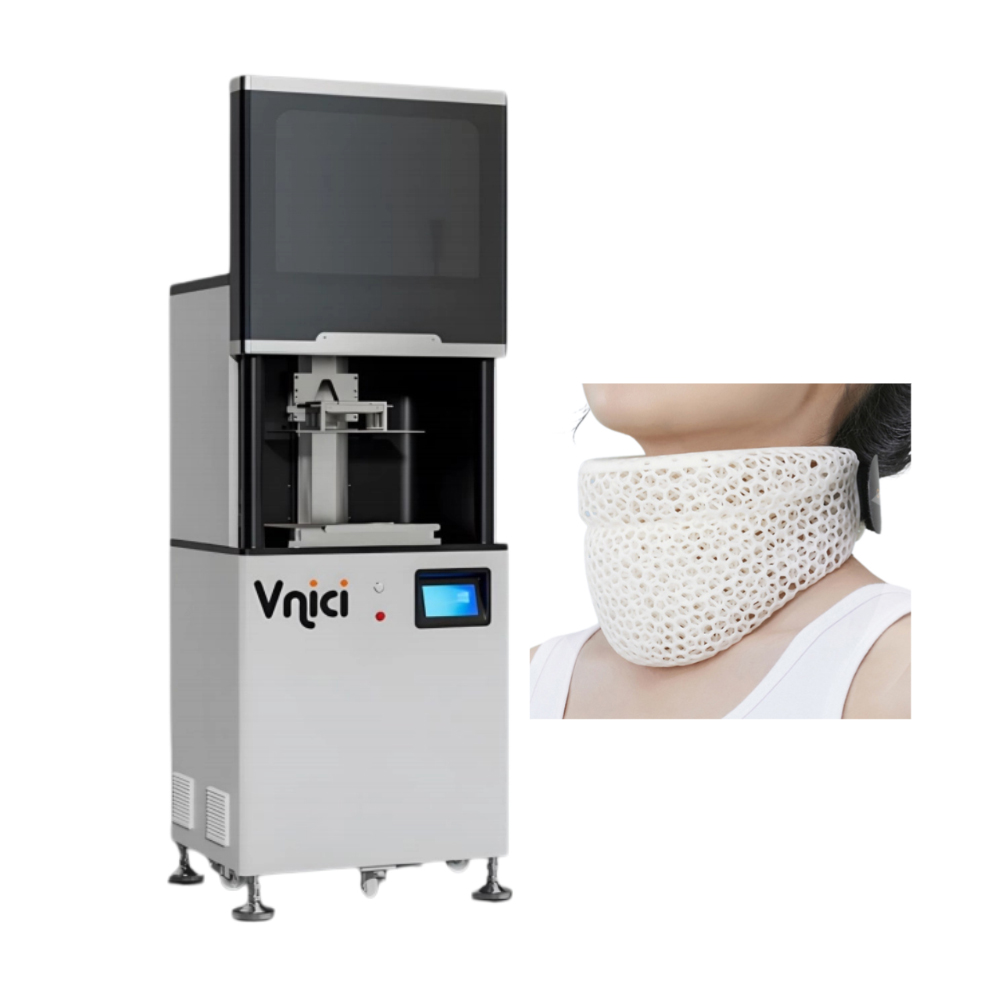

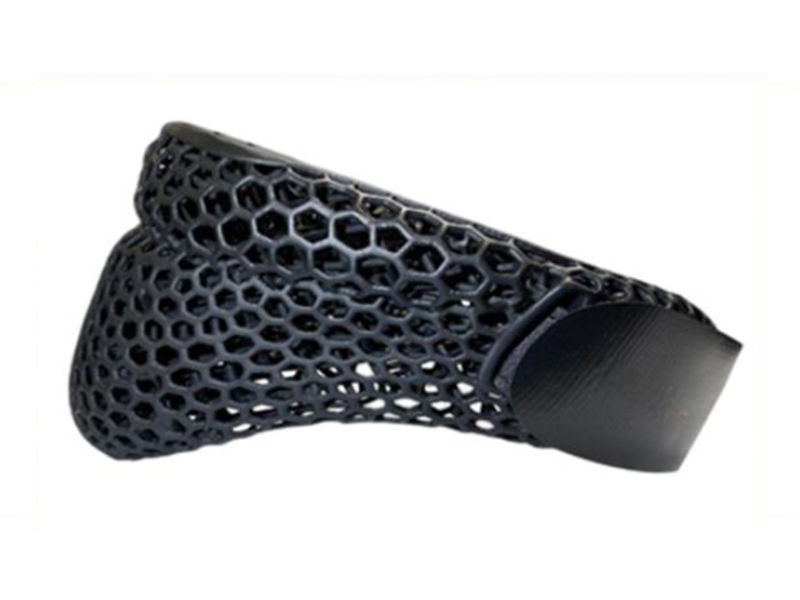

3D-Printed-Neck-Braces

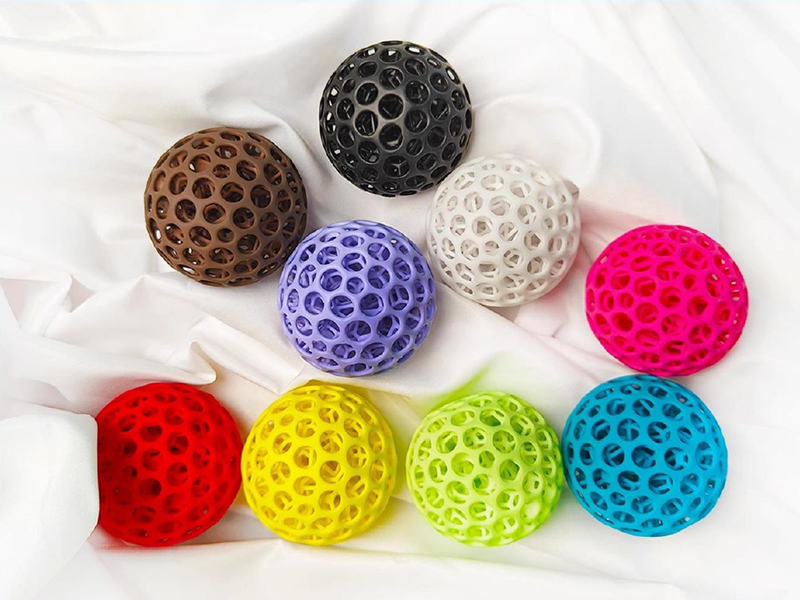

Grip Balls

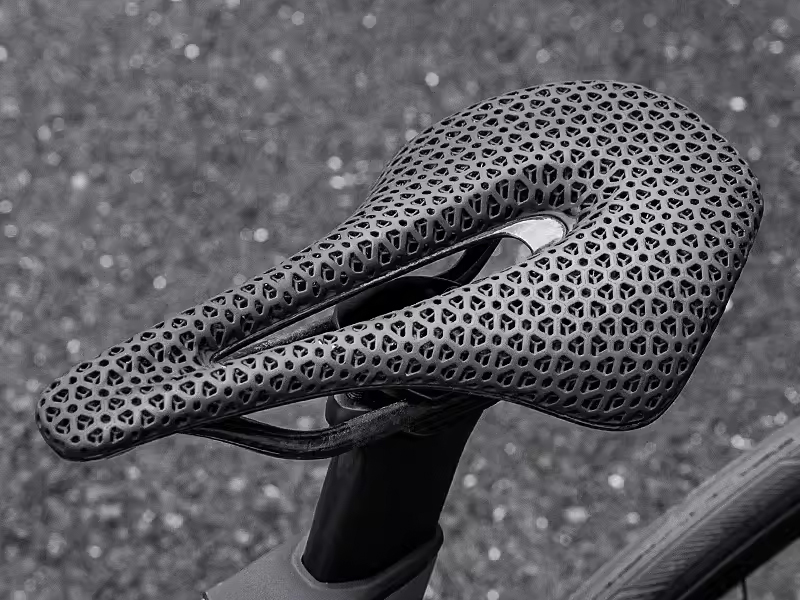

others

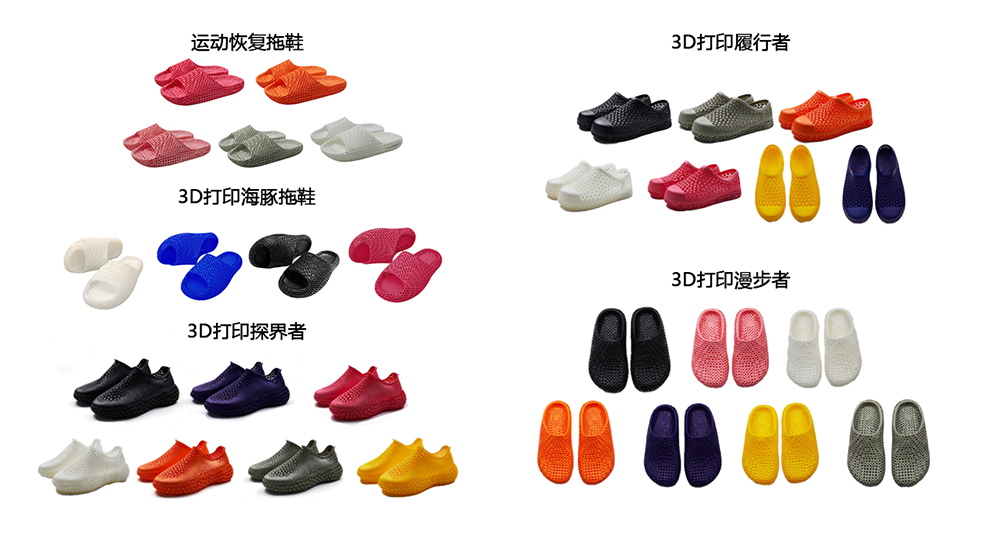

Sample Gallery of Ultrahigh Speed 3D Printer RayForm-400D

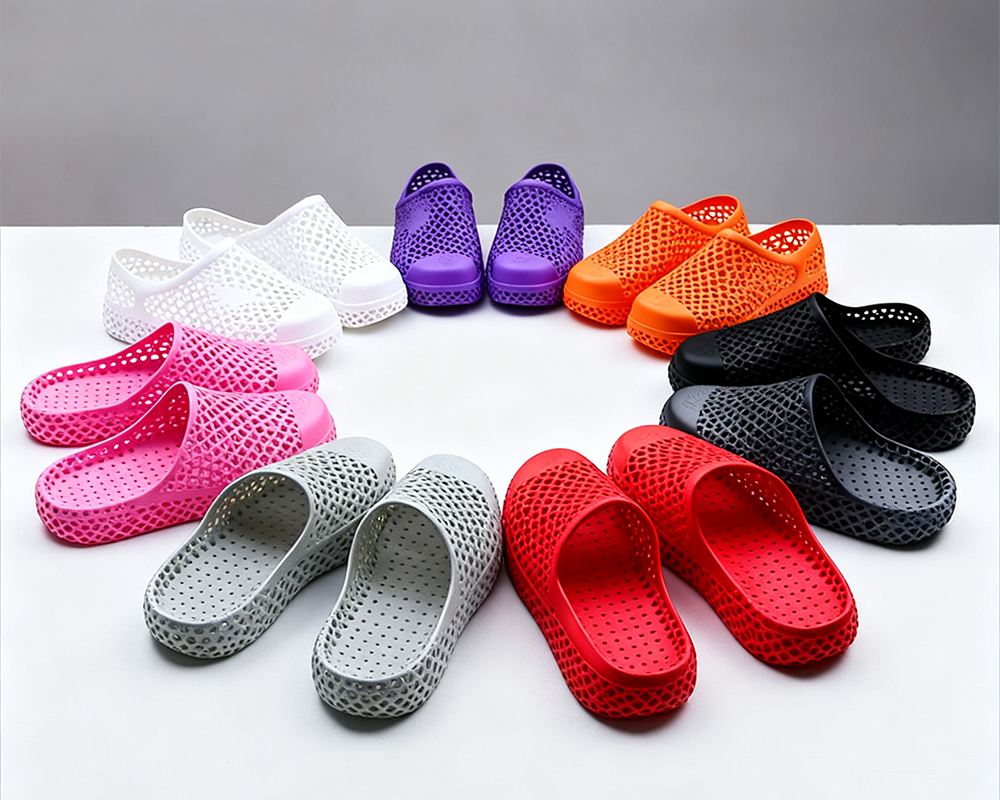

Sample-Gallery11
Sample-Gallery12

Why Choose VNICI As Your Ultrahigh Speed 3D Printer Supplier?

Core-Technology

Core Technology

Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.
Industrial-Solutions

Industrial Solutions

We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.
DM_20260611160809_001

Good after-sales service

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.
DM_20260611160810_001

Fast Delivery

We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.

Ultrahigh Speed 3D Printer RayForm-400D FAQ

  • Can I use my own logo or design on the products?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we offer OEM/ODM services; your logo and design can be created on the products.

  • Do you have a factory?

    加 Created with Sketch.
    形状 Created with Sketch.

    Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and provide OEM/ODM services to our customers.

  • What is your factory's production capacity?

    加 Created with Sketch.
    形状 Created with Sketch.

    Our production capacity is equivalent to 2,000 3d printers per month and 20 tons resins per month.

  • What is the pricing information for your products?

    加 Created with Sketch.
    形状 Created with Sketch.

    Hello! How can I assist you today? What products are you interested in? Please let me know your needs, and we can discuss further.

  • What brand of laser do you use?

    加 Created with Sketch.
    形状 Created with Sketch.

    We use AOC laser. What brand of laser do you prefer?

  • What brand of scanner do you use?

    加 Created with Sketch.
    形状 Created with Sketch.

    We use Hans scanner or Scanlab Scanner. Which one do you prefer?
